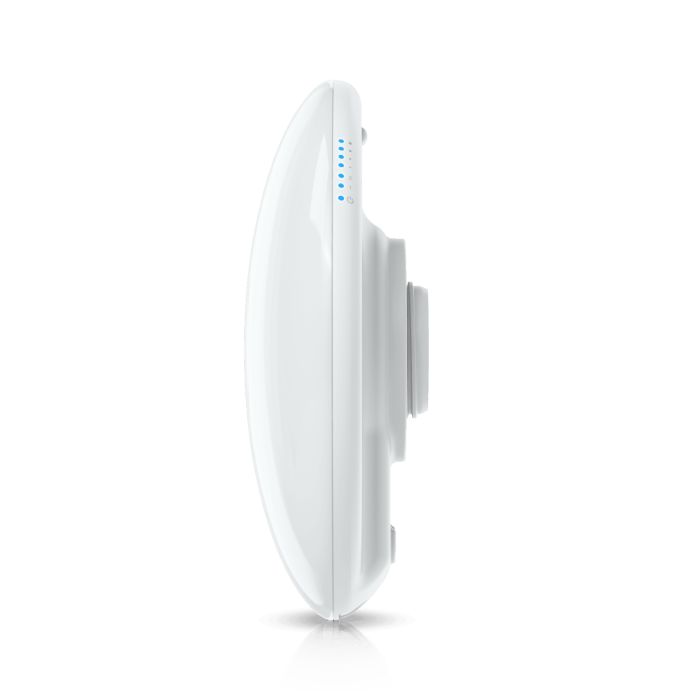

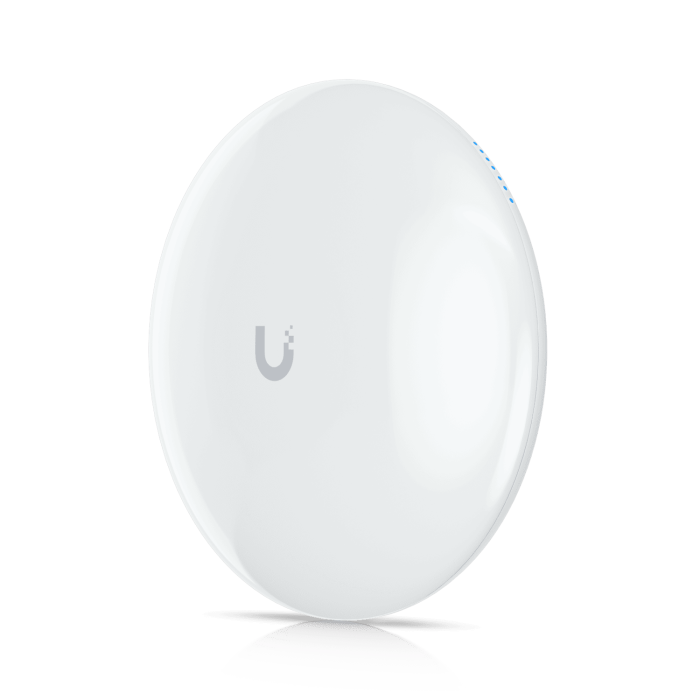

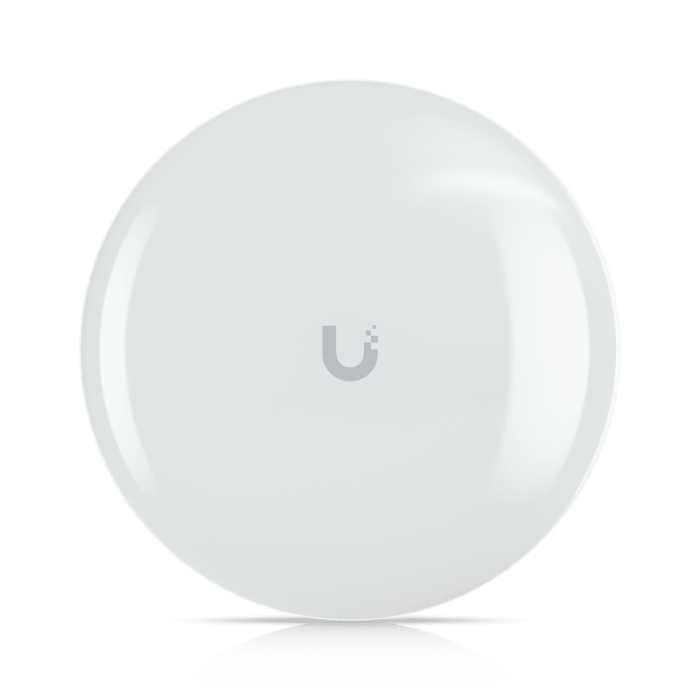

Ubiquiti UDB-Pro — Enterprise / Industrial Outdoor Device Bridge for Professional Networks

The Ubiquiti Device Bridge Pro (UDB-Pro) is a professional WiFi bridge device designed for long-range data transmission up to 5 km. Ideal for outdoor networks, building-to-building links, or industrial and campus environments.

Dimensions: Ø189.5 x 64.3 mm, mountable on wall or pole (pole included). Weatherproof with IPX6 rating.

WiFi Performance: operates on 5 GHz band with 2x2 MIMO, providing a maximum data rate of 867 Mbps (BW80). Internal antenna gain is 19 dBi, max TX power 25 dBm. Supported standards include 802.11ac (WiFi 5), 802.11n, and 802.11a. Security is provided via WPA2 AES.

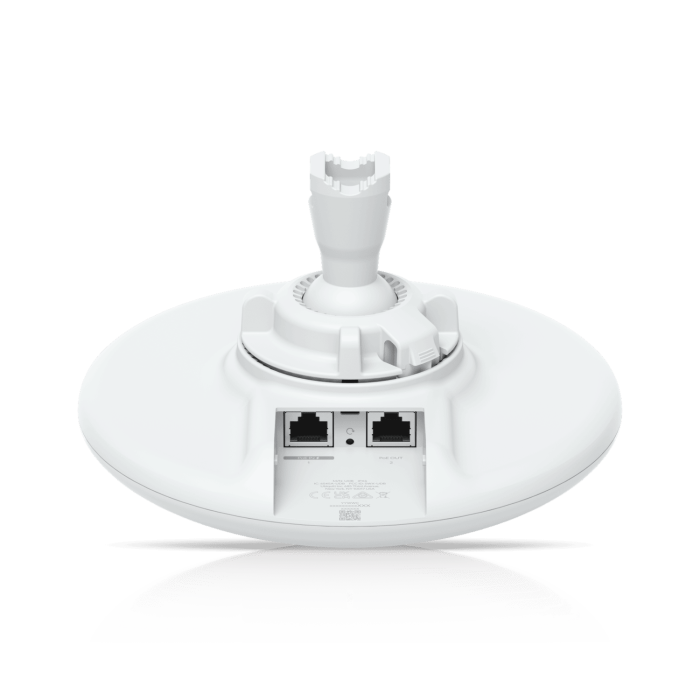

Hardware: powered via PoE/PoE+ (48V, 0.32A, adapter included). Includes 2x GbE RJ45 ports and provides passive PoE output. Device weight is 431 g (515 g with mount) and can withstand wind loading up to 200 km/h.

Enclosure is made of UV-resistant polycarbonate with UV-stabilized polycarbonate and stainless steel mount, making the Device Bridge Pro durable and reliable for outdoor deployments.
