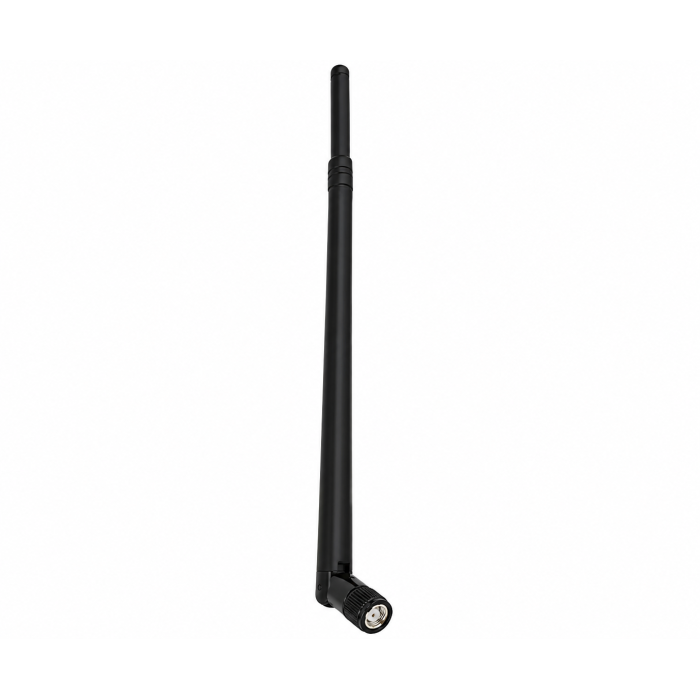

RA-L05 Swivel Antenna 2.4GHz for Wireless Networks

For extending Wi-Fi coverage in offices, access points, or network equipment that requires an external antenna, the RA-L05 swivel antenna offers a straightforward way to improve signal on the 2.4 GHz band. It's commonly used with routers, access points, and other wireless equipment fitted with a compatible connector, in situations where the original antenna doesn't provide adequate coverage. Being omnidirectional, the antenna distributes signal evenly in all directions, suiting offices, warehouses, or retail spaces.

The 9dBi gain extends coverage range compared to a standard antenna, maintaining a stable connection at greater distances from the access point. Vertical polarization and a 360° horizontal beam width support even signal distribution, while 50Ω impedance and VSWR below 2.0 ensure efficient power transfer to the antenna without significant loss. The rated 1W power handling covers the needs of most business Wi-Fi equipment.

Connection is made via a TNC Male RS connector, compatible with equipment fitted with this type of external antenna port. The swivel design allows the antenna to be angled for signal optimization depending on device placement and room layout. The ABS radome and base material provide basic mechanical protection, while the compact dimensions (390mm length, 46g weight) allow installation without taking up extra space.

It's recommended for extending Wi-Fi coverage on access points or routers in offices, retail stores, or commercial spaces, and for replacing underperforming stock antennas. An operating temperature range of -30°C to +60°C allows use both indoors and in unheated technical areas. It integrates into any existing wireless setup using a TNC connector, with no additional equipment modifications required.
