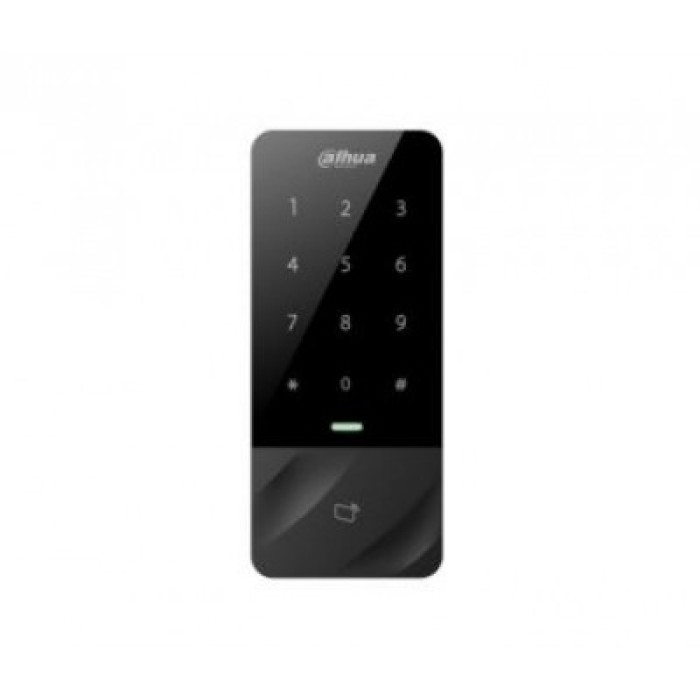

Dahua DHI-ASI1201E has the latest trends inherent in the latest A&C Host, as the device is equipped with a touch keyboard and LCD screen. Access to the room takes place using a card, password or a combination of password + card.
The integrated reader can scan Mifare standard cards with a frequency of 13.56 MHz at a distance of 3-6 centimeters. The maximum number of cards is 30,000 pieces and 150,000 messages can be stored in 16MB memory. The data is processed using a 32-bit processor, and the device is controlled directly by commands on the keyboard or remotely over the network from a computer using a CMS program.
Users of the controller can be divided into main, VIP, guests, blacklist or groups. The maximum number of groups is 128, for which you can provide a schedule or schedule, validity period and holidays. This data can be used to compile a timesheet in the office by setting the time using the RTC.
- Identification: card, password and their combinations
- TCP/IP protocol support
- Record up to 30,000 cards and up to 150,000 events
- Multi-function card support
- Support Wiegand or RS-485 to connect
- Alarms about an unlocked door, intrusion, forced alarm, theft sensor
- Re-entry ban, multifunctional card
- Assignment of up to 128 work periods and holidays
- Watch dog
- IP67 function
