265.20 $

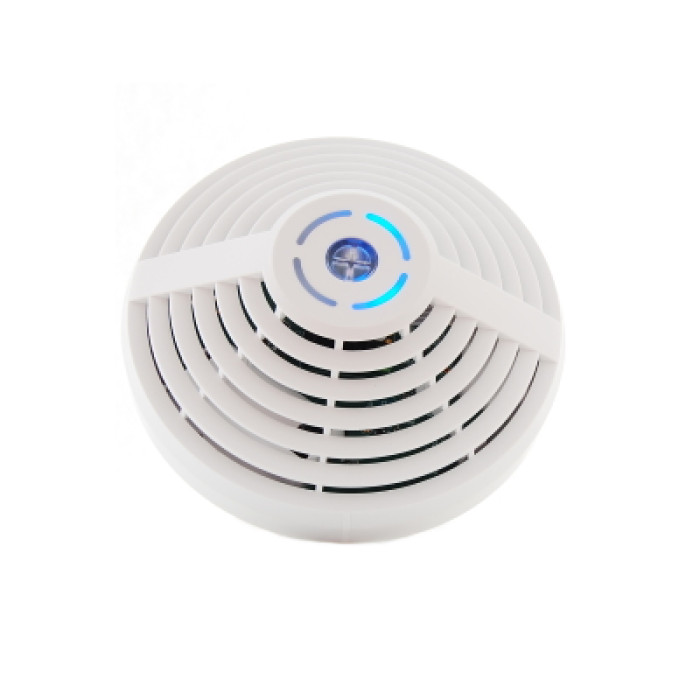

Universal Office Sensor 5 in 1 Vega Smart-UM0101

Brand: Vega Absolute
Product Code: PS110454
SKU: UM0101
Reviews: (0)
In Stock: 1 pcs.
265.20 $
Ex Tax: 221.00 $
Specifications: (see all)
Destination
Industrial
Measurement CO2 concentration level range, ppm
0...40 000
Measurement humidity range, %
0...100
Measurement light level range, lx
0...10 000
Measurement noise level range, dB
40...110
Shipping We will deliver the order in 1-2 days. Payment Pay quickly and conveniently Cumulative discounts Collect bonuses and gifts

Vega Smart-UM0101 sensor combines a several functions: control of temperature, humidity parameters of the environment, CO2 level, noise and ambient light level with the ability to set thresholds of these ones. Sensor's base can be mounted on a flat surface and then main sensor module is attached to the base. The device has a removal sensor. Every time alarm event occur, information message will send to LoRaWAN® network.

Vega Smart-UM0101 can be used to control labor circumstances in office and manufacture spaces, as well as Smart Home systems, built on LoRaWAN® technology. CO2 sensor may be installed or not on the board in depend on the order conditions.

Characteristics
Destination
Industrial
Measurement CO2 concentration level range, ppm
0...40 000
Measurement humidity range, %
0...100
Measurement light level range, lx
0...10 000
Measurement noise level range, dB
40...110
Measurement temperature range, °С
-40…+85
Replaceable battery
2xCR123A 3V 1400mAh (total 2800 mAh)
USB-port
micro-USB, type B
Operating temperatures, °С
-40…+85
LoRaWAN® class
A
Number of LoRaWAN® channels
16
Frequency plan (depend on choosed firmware)
RU868, EU868, KZ865, custom (EU868 based)
Activation type
ABP or OTAA
Communication period
5, 15, 30 minutes, 1, 6, 12 or 24 hours
Data collection period
5, 15, 30 minutes, 1, 6, 12 or 24 hours
Antenna type
internal
Sensitivity
-138 dBm
Radio coverage within line of sight
up to 15 dBm
Radio coverage in restrained urban conditions
up to 5 km
Transmitter power by default
25 mW (configurable)
Maximum transmitter power
100 mW
Ingress protection rating
IP40
