84.24 $

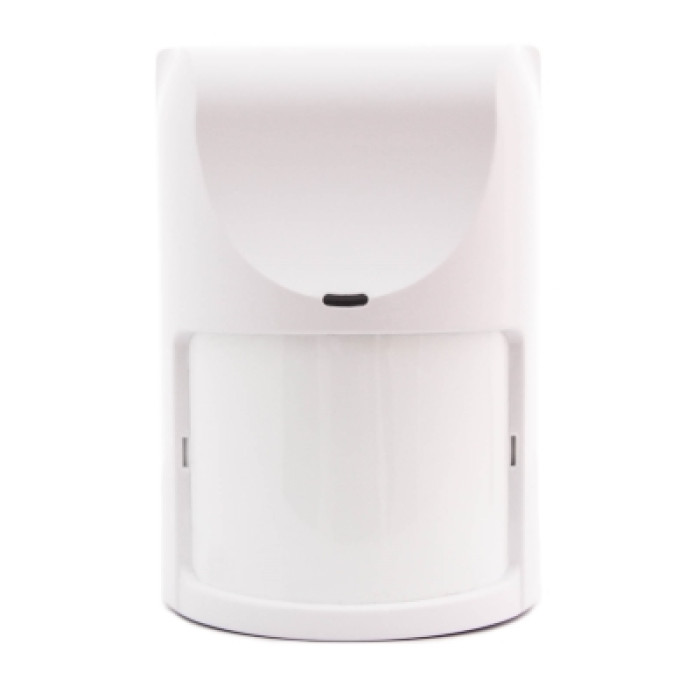

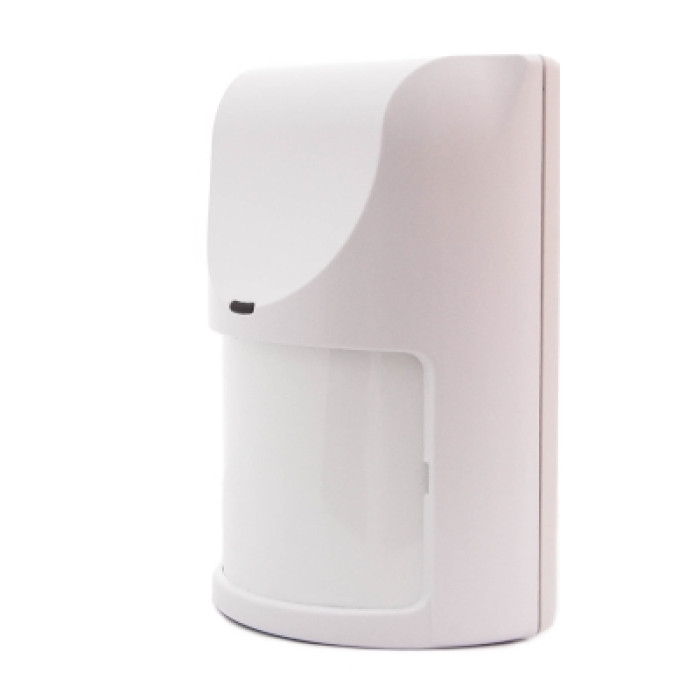

Infrared motion sensor Vega Smart-MS0101

Brand: Vega Absolute
Product Code: MS0101
SKU: MS0101
Reviews: (0)
Pre-Order
84.24 $
Ex Tax: 70.20 $
Specifications: (see all)
Destination
Industrial
Replaceable battery
CR123A 3V, 1400 mAh
USB-port
mini-USB, type B
Operating temperatures, °С
-40…+70
LoRaWAN® class
A
Shipping We will deliver the order in 1-2 days. Payment Pay quickly and conveniently Cumulative discounts Collect bonuses and gifts

Infrared motion sensor Vega Smart-MS0101 is designed to detect penetration into the protected area. The sensor alternately operates in two modes: «Guard» and «Neutral». In the «Guard» mode, the device sends an alarm message to the LoRaWAN® network when motion is detected, after which it switches to the «Neutral» mode for a while. In the «Neutral» mode, the sensor does not send alarm messages when motion is detected. If the movement in the protected area has ceased, the device switches back to the «Guard» mode.Vega Smart-MS0101 can be used to protect premises, buildings and structures, as well as in Smart Home systems, built on LoRaWAN® technology.

Characteristics
Destination
Industrial
Replaceable battery
CR123A 3V, 1400 mAh
USB-port
mini-USB, type B
Operating temperatures, °С
-40…+70
LoRaWAN® class
A
Number of LoRaWAN® channels
16
Frequency plan (depend on choosed firmware)
RU868, EU868, IN865, AS923, AU915, KR920, US915, KZ865, custom (EU868 based)
Activation type
ABP or OTAA
Data collection period
5, 15, 30 minutes, 1, 6, 12 or 24 hours
Antenna type
internal
Sensitivity
-138 dBm
Radio coverage within line of sight
up to 15 km
Radio coverage in restrained urban conditions
up to 5 km
Transmitter power by default
25 mW (configurable)
Maximum transmitter power
100 mW
Ingress protection rating
IP41
