249.60 $

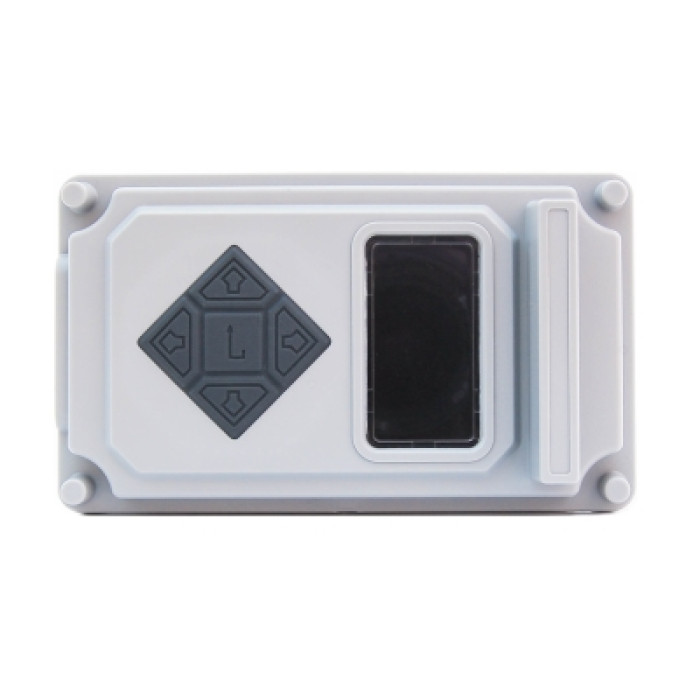

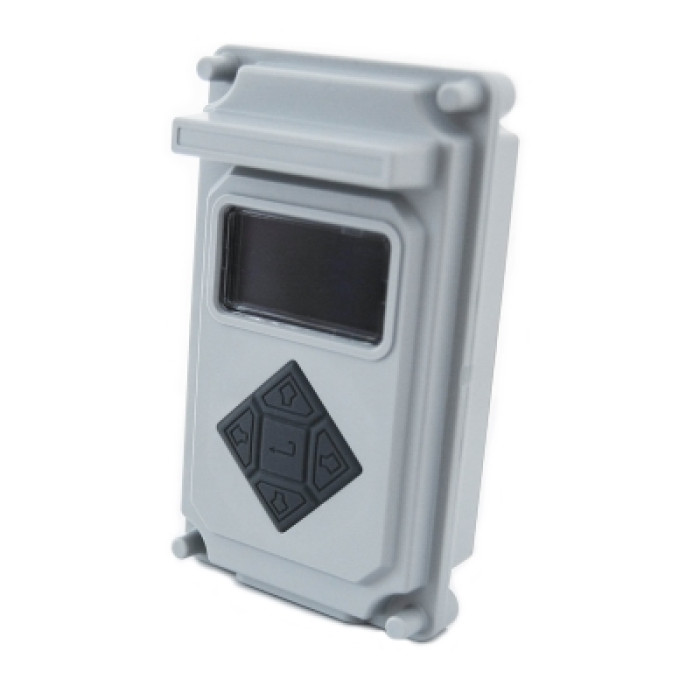

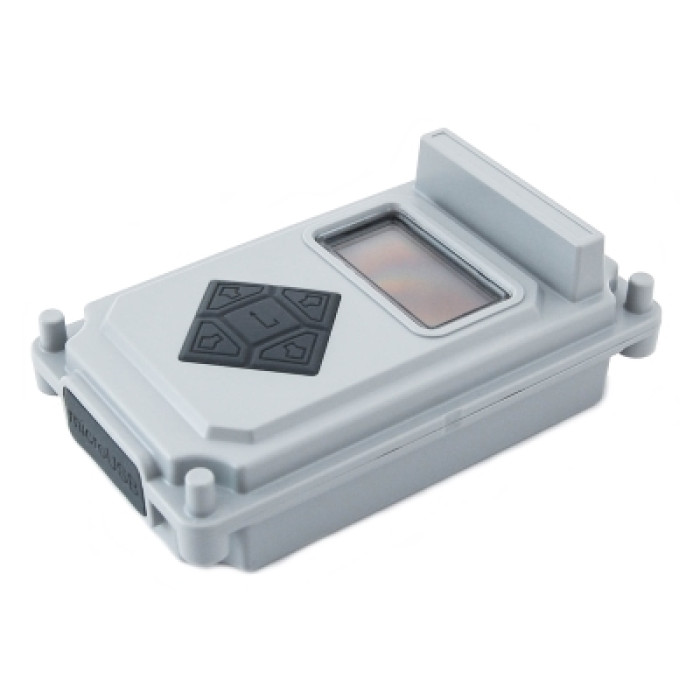

Network tester Vega TS-12

Brand: Vega Absolute
Product Code: PS110451
SKU: TS-12
Reviews: (0)
In Stock: 1 pcs.
249.60 $
Ex Tax: 208.00 $
Specifications: (see all)
Destination
Industrial
Display
OLED, 1.3 inches
GPS/GLONASS antenna type
internal
Sensitivity of navigation receiver
no less than -160dBm
USB-port
micro-USB, 5V, 500mA
Shipping We will deliver the order in 1-2 days. Payment Pay quickly and conveniently Cumulative discounts Collect bonuses and gifts

LoRaWAN® network tester. The device is able to work in a standalone mode for several hours due to built-in battery. TS-12 sends a special signal to the LoRaWAN;® network, in response to which the network informs it about the number of gateways that have received this signal and the signal quality. This data tester displays every time you press the button.
The network tester Vega TS-12 has the function of determining the coordinates by the satellites. When this feature is enabled, the tester continuously updates its coordinates and sends them with the standard packet to the LoRaWAN® network.
The device can be used to test networks of the standard LoRaWAN® when they are deployed and configured. The tester helps to decide on the best placement of gateways and terminals relative to each other.

Characteristics
Destination
Industrial
Display
OLED, 1.3 inches
GPS/GLONASS antenna type
internal
Sensitivity of navigation receiver
no less than -160dBm

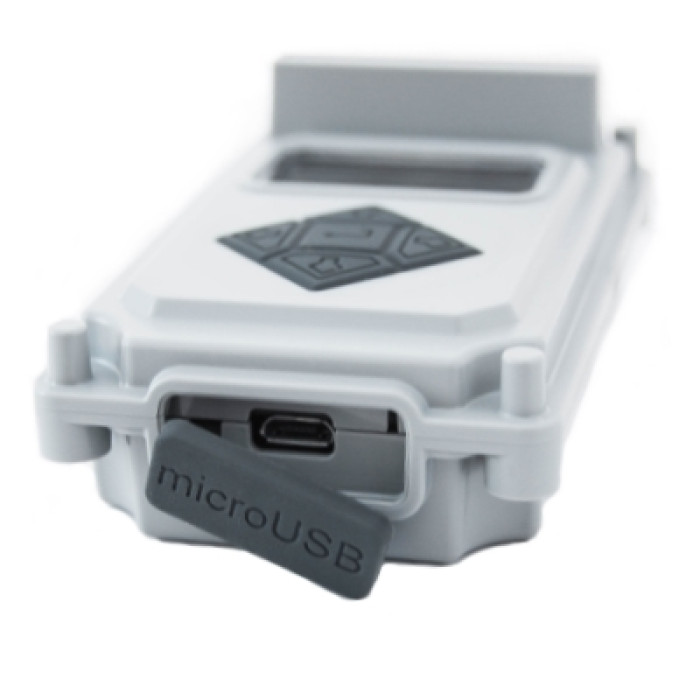

USB-port
micro-USB, 5V, 500mA
Operating temperatures, °С
-40…+85
LoRaWAN® class
A
Antenna type
internal
Sensitivity
-138 dBm
Radio coverage within line of sight
up to 15 km
Radio coverage in restrained urban conditions
up to 5 km
Transmitter power by default
25 mW (configurable)
Maximum transmitter power
100 mW
Built-in battery
550 mAh
Ingress protection rating
IP64
