102.96 $

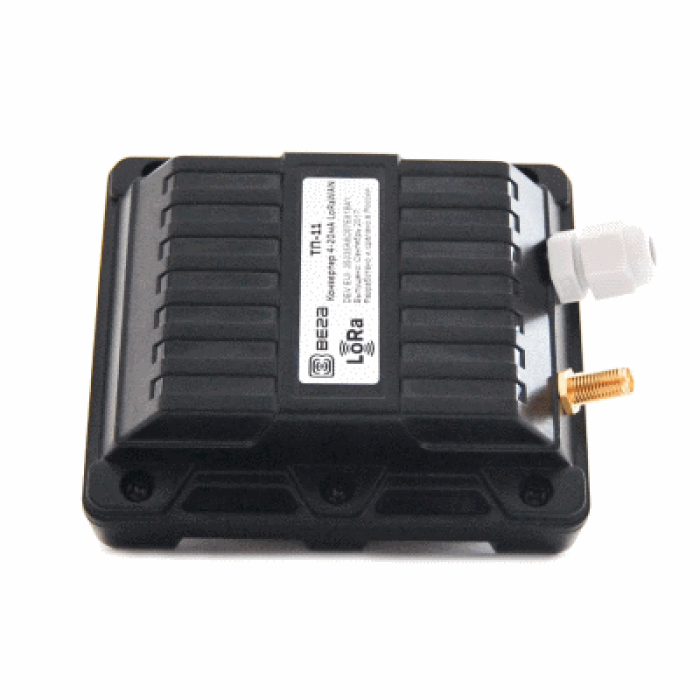

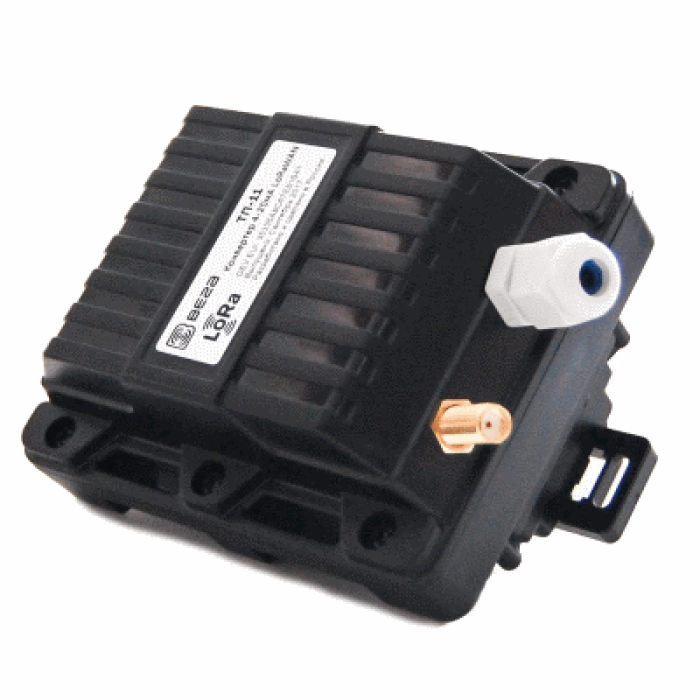

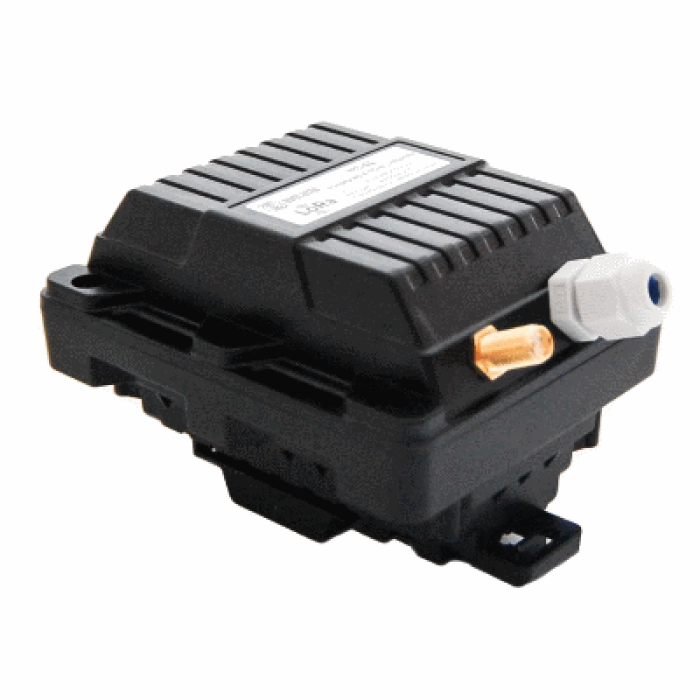

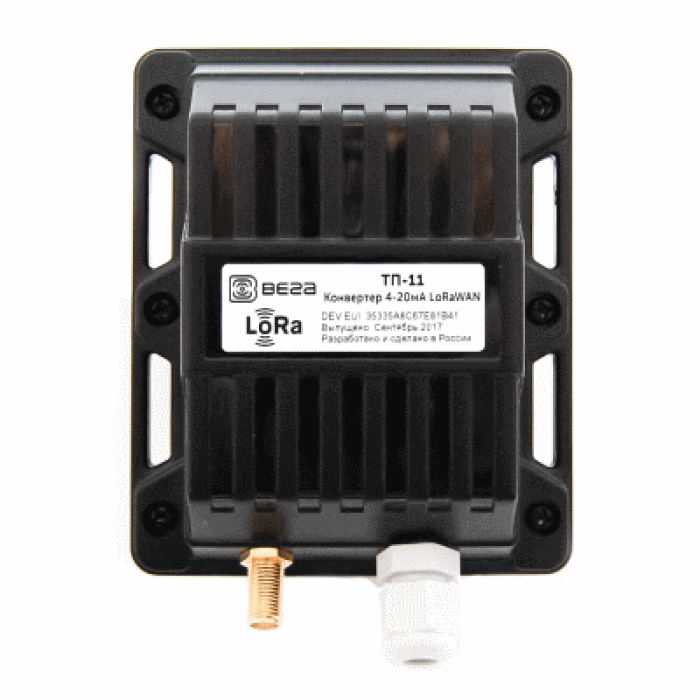

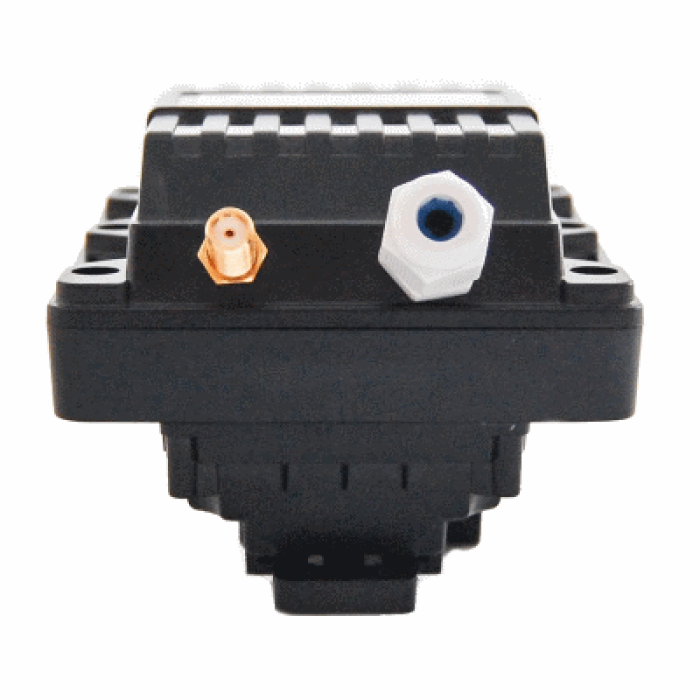

Converter 4-20 mA to the LoRaWAN Vega TP-11

Converter 4-20 mA to the LoRaWAN Vega TP-11
Converter 4-20 mA to the LoRaWAN Vega TP-11
Converter 4-20 mA to the LoRaWAN Vega TP-11
Converter 4-20 mA to the LoRaWAN Vega TP-11
Converter 4-20 mA to the LoRaWAN Vega TP-11
Converter 4-20 mA to the LoRaWAN Vega TP-11
Converter 4-20 mA to the LoRaWAN Vega TP-11
Converter 4-20 mA to the LoRaWAN Vega TP-11
Converter 4-20 mA to the LoRaWAN Vega TP-11
Converter 4-20 mA to the LoRaWAN Vega TP-11
Brand: Vega Absolute
Product Code: TP-11
SKU: TP-11
Reviews: (0)
Pre-Order
102.96 $
Ex Tax: 85.80 $
Specifications: (see all)
4-20 mA current loop interface
1
Antenna connector
SMA
Destination
Industrial
Output voltage of the 4-20 mA interface
24 V
Open-drain outputs
2
Shipping We will deliver the order in 1-2 days. Payment Pay quickly and conveniently Cumulative discounts Collect bonuses and gifts

The TP-11 converter is designed for reading data from devices with 4-20 mA interface with subsequent accumulation and transfer of this information to the LoRaWAN® network.The battery for the converter is an irreplaceable battery, designed for a lifetime of up to 10 years. With battery power, the converter operates as Class A LoRaWAN® device. The converter can operate from an external power source with a voltage of 10 ... 36 V. In that case, the converter operates as Class C device.In addition, the TP-11 converter has two security inputs that trigger the alarm message to the LoRaWAN® network and two open-drain outputs for the external devices control.

Characteristics
4-20 mA current loop interface
1
Antenna connector
SMA
Destination
Industrial
Output voltage of the 4-20 mA interface
24 V
Open-drain outputs
2
Security inputs
2
Security inputs
2
USB-port
mini-USB, type B
Operating temperatures, °С
-40…+85
Built-in temerature sensor
yes
LoRaWAN® class
A or C depending on the presence of the external power supply
Number of LoRaWAN® channels
16
Frequency plan (depend on choosed firmware)
RU868, EU868, IN865, AS923, AU915, KR920, US915, KZ865, custom (EU868 based)
Activation type
ABP or OTAA
Communication period
5, 15, 30 minutes, 1, 6, 12 or 24 hours
Data collection period
5, 15, 30 minutes, 1, 6, 12 or 24 hours
Sensitivity
-138 dBm
Radio coverage within line of sight
up to 15 km
Radio coverage in restrained urban conditions
up to 5 km
Transmitter power by default
25 mW (configurable)
Maximum transmitter power
100 mW
Built-in battery
6400 mAh
External power
10...36 V
Ingress protection rating
IP65
Mounting
clamp fastening to the support, DIN-rail, wall-mounting
