93.60 $

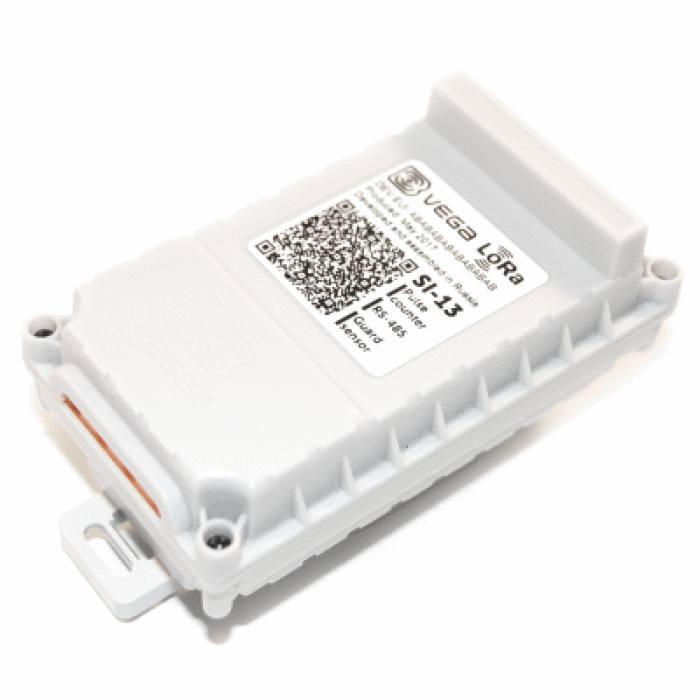

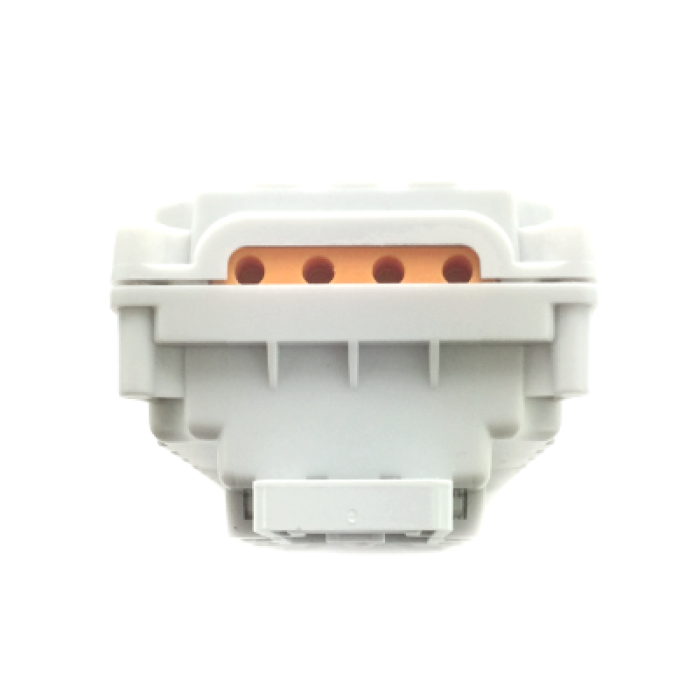

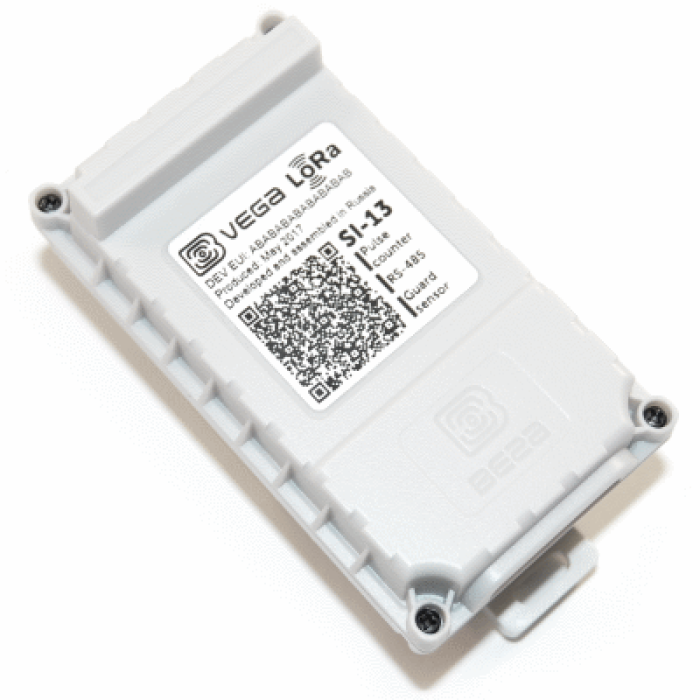

Vega SI-13-485 - RS-485 to LoRaWAN® converter

Vega SI-13-485 - RS-485 to LoRaWAN® converter
Vega SI-13-485 - RS-485 to LoRaWAN® converter
Vega SI-13-485 - RS-485 to LoRaWAN® converter
Vega SI-13-485 - RS-485 to LoRaWAN® converter
Vega SI-13-485 - RS-485 to LoRaWAN® converter
Vega SI-13-485 - RS-485 to LoRaWAN® converter
Vega SI-13-485 - RS-485 to LoRaWAN® converter
Vega SI-13-485 - RS-485 to LoRaWAN® converter
Vega SI-13-485 - RS-485 to LoRaWAN® converter
Vega SI-13-485 - RS-485 to LoRaWAN® converter
Brand: Vega Absolute
Product Code: PS110559
SKU: SI-13-485
Reviews: (0)
In Stock: 1 pcs.
93.60 $
Ex Tax: 78.00 $
Specifications: (see all)
Destination
Industrial
Pulse inputs
up to 2
Maximum frequency of input signal
200 Hz
Open-drain outputs
up to 2
Security inputs
Shipping We will deliver the order in 1-2 days. Payment Pay quickly and conveniently Cumulative discounts Collect bonuses and gifts

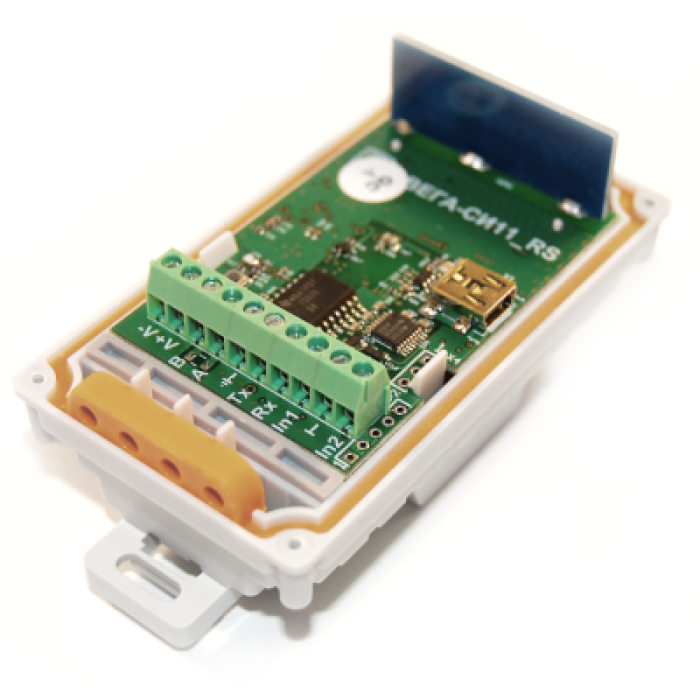

Vega SI-13-485 converter is able to operate as LoRaWAN® <-> RS-485 transparent wireless modem or to count electrical pulses incoming to 2 independent inputs, to accumulate and further transmit this data via the LoRaWAN® protocol to the gateway through wireless communication within 860-1000 MHz frequency plan. In addition, Vega SI-13-485 can be used as a security device, i.e. pulse inputs can be configured as security inputs. The converter can be used for any utilities’ meters and industrial equipment with RS-485 interface or pulse output like a herkon or an open-drain output. The converter is powered by the 8...36 V external power supply.

Characteristics
Destination
Industrial
Pulse inputs
up to 2
Maximum frequency of input signal
200 Hz
Open-drain outputs
up to 2
Security inputs
RS-485 interface
1
Security inputs
up to 2
USB-port
mini-USB, type B
Operating temperatures, °С
-40…+85
Built-in temerature sensor
yes
LoRaWAN® class
C
Number of LoRaWAN® channels
16
Frequency plan (depend on choosed firmware)
EU-868, RU-868, custom
Activation type
ABP or OTAA
Data collection period
1, 6, 12 or 24 hours
Antenna type
internal
Sensitivity
-138 dBm
Radio coverage within line of sight
up to 15 km
Radio coverage in restrained urban conditions
up to 5 km
Transmitter power by default
25 mW (configurable)
Maximum transmitter power
100 mW
External power
8...36 V
Ingress protection rating
IP65

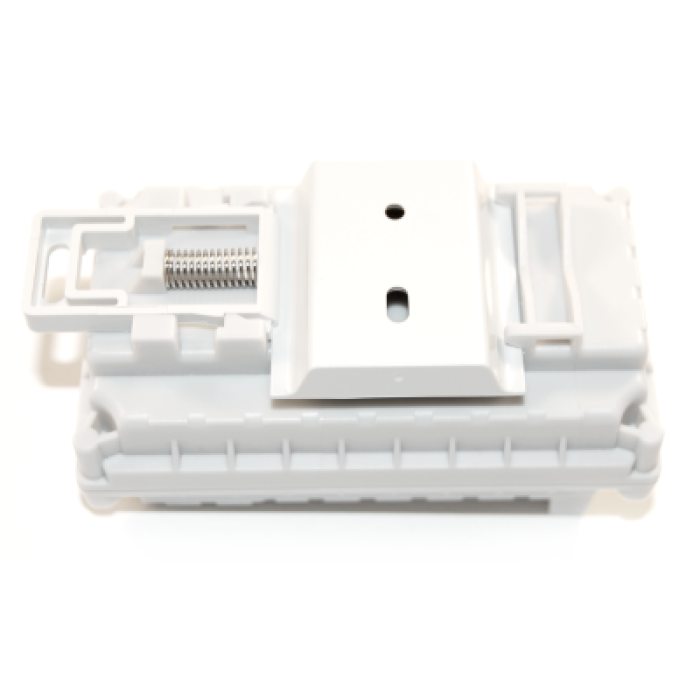

Mounting
clamp fastening to the support, DIN-rail, wall-mounting
