87.36 $

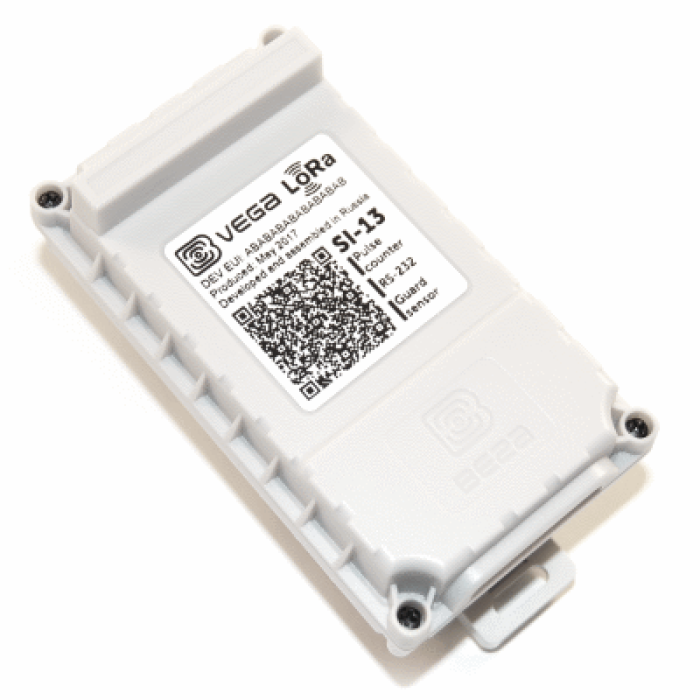

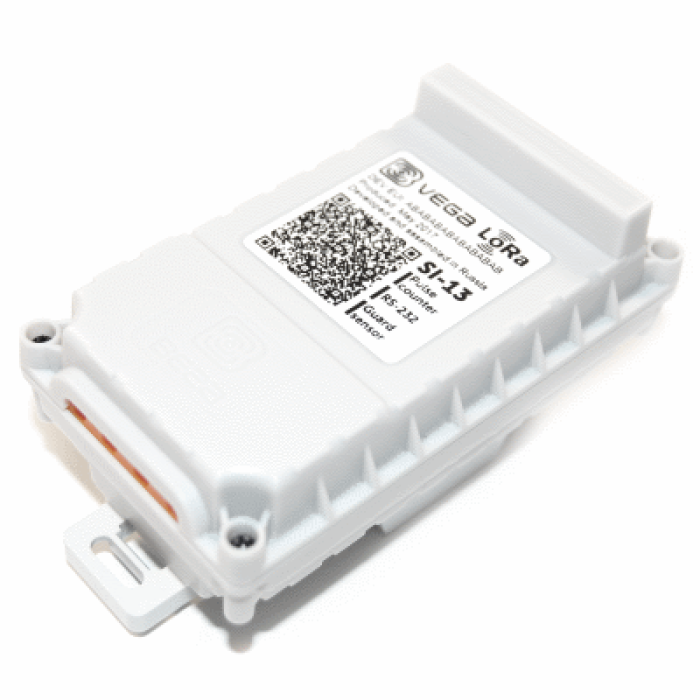

Converter RS-232 to LoRaWAN Vega SI-13-232

Converter RS-232 to LoRaWAN Vega SI-13-232
Converter RS-232 to LoRaWAN Vega SI-13-232
Converter RS-232 to LoRaWAN Vega SI-13-232
Converter RS-232 to LoRaWAN Vega SI-13-232
Converter RS-232 to LoRaWAN Vega SI-13-232
Converter RS-232 to LoRaWAN Vega SI-13-232
Converter RS-232 to LoRaWAN Vega SI-13-232
Converter RS-232 to LoRaWAN Vega SI-13-232
Converter RS-232 to LoRaWAN Vega SI-13-232
Converter RS-232 to LoRaWAN Vega SI-13-232
Brand: Vega Absolute
Product Code: SI-13-232
SKU: SI-13-232
Reviews: (0)
Pre-Order
87.36 $
Ex Tax: 72.80 $
Specifications: (see all)
Destination
Industrial
Pulse inputs
up to 2
Maximum frequency of input signal
200 Hz
Open-drain outputs
up to 2
Security inputs
up to 2
Shipping We will deliver the order in 1-2 days. Payment Pay quickly and conveniently Cumulative discounts Collect bonuses and gifts

Vega SI-13-232 converter is able to operate as LoRaWAN® <-> RS-232 transparent wireless modem or to count electrical pulses incoming to 2 independent inputs, to accumulate and further transmit this data via the LoRaWAN® protocol to the gateway through wireless communication within 860-1000 MHz frequency plan. In addition, Vega SI-13-232 can be used as a security device, i.e. pulse inputs can be configured as security inputs. The converter can be used for any utilities’ meters and industrial equipment with RS-232 interface or with pulse output like a herkon or an open-drain output. The converter is powered by the 8...36 V external power supply.

Characteristics
Destination
Industrial
Pulse inputs
up to 2
Maximum frequency of input signal
200 Hz
Open-drain outputs
up to 2
Security inputs
up to 2
RS-232 interface
1
Security inputs
up to 2
USB-port
mini-USB, type B
Operating temperatures, °С
-40…+85
Built-in temerature sensor
yes
LoRaWAN® class
C
Number of LoRaWAN® channels
16
Frequency plan (depend on choosed firmware)
EU-868, RU-868, custom
Activation type
ABP or OTAA
Data collection period
1, 6, 12 or 24 hours
Antenna type
internal
Sensitivity
-138 dBm
Radio coverage within line of sight
up to 15 km
Radio coverage in restrained urban conditions
up to 5 km
Transmitter power by default
25 mW (configurable)
Maximum transmitter power
100 mW
External power
8...36 V
Ingress protection rating
IP65
Mounting

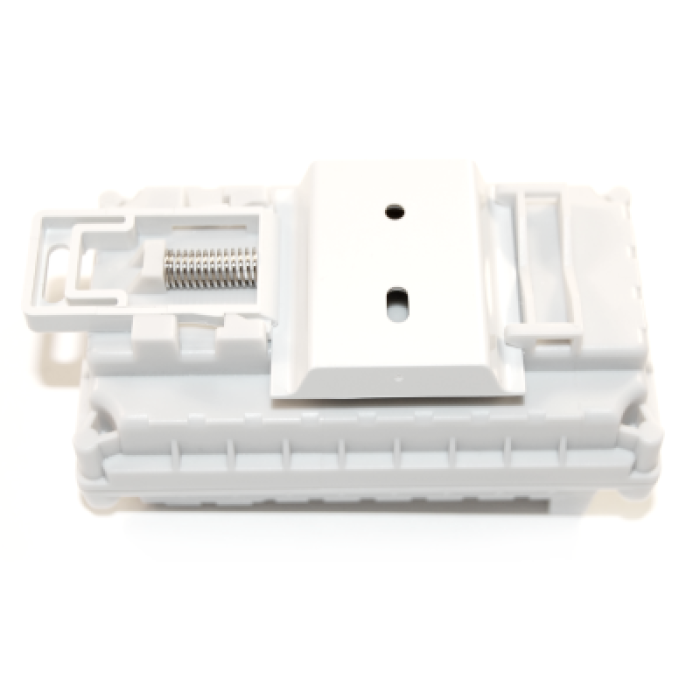

clamp fastening to the support, DIN-rail, wall-mounting
