Pulse counter with two outputs Vega SI-12

Brand: Vega Absolute
Product Code: PS110560
SKU: SI-12
Reviews: (0)
In Stock: 2 pcs.
76.44 $
Ex Tax: 63.70 $
Specifications: (see all)
Destination
Industrial
Pulse inputs
up to 4
Maximum frequency of input signal
200 Hz
Open-drain outputs
up to 4
Security inputs
up to 4
Shipping We will deliver the order in 1-2 days. Payment Pay quickly and conveniently Cumulative discounts Collect bonuses and gifts

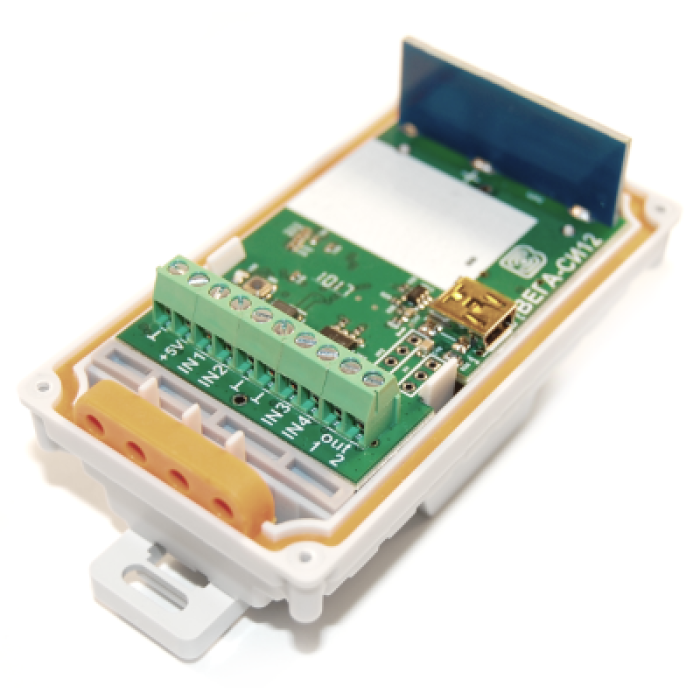

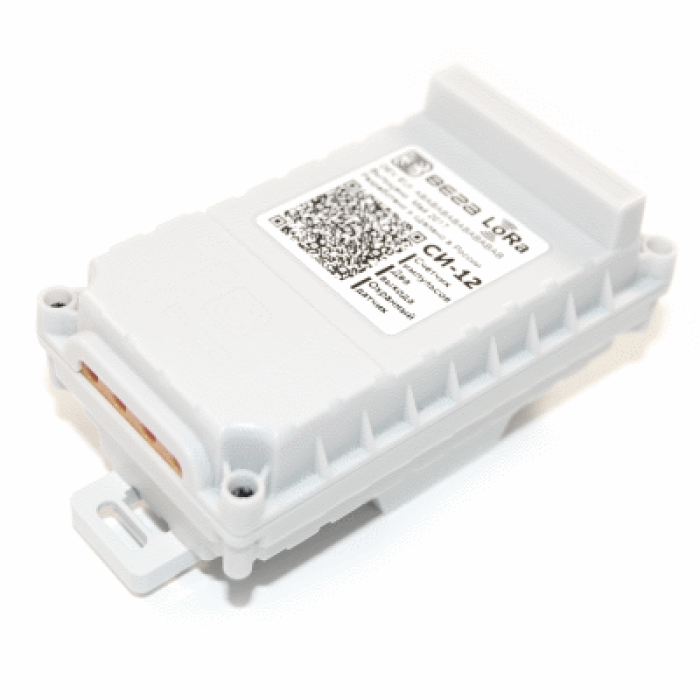

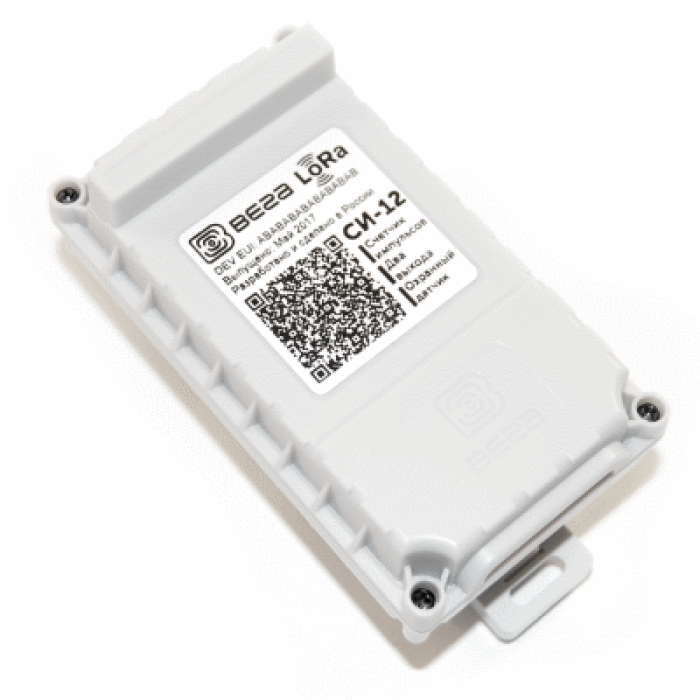

Vega SI-12 pulse counter is designed for counting of electrical pulses incoming to 4 independent inputs, further accumulating and transmitting of this information via the LoRaWAN® protocol to the gateway through wireless communication within 860-1000 MHz frequency plan. The counter is powered by a soldered battery with up to 10 years life up. The counter can be powered by the 5V external power supply, i.e. it can be either of class A or class C. In addition, Vega SI-12 can be used as a security device - any of four inputs can be configured as security inputs. The pulse counter can be used for any utilities’ meters and industrial equipment with pulse output like a herkon or an open-darin output.

Characteristics
Destination
Industrial
Pulse inputs
up to 4
Maximum frequency of input signal
200 Hz
Open-drain outputs
up to 4
Security inputs
up to 4
Security inputs
up to 4
USB-port
mini-USB, type B
Operating temperatures, °С
-40…+85
Built-in temerature sensor
yes
LoRaWAN® class
A or C depending on the presence of the external power supply
Number of LoRaWAN® channels
16
Frequency plan (depend on choosed firmware)
RU868, EU868, IN865, AS923, AU915, KR920, US915, KZ865, custom (EU868 based)
Activation type
ABP or OTAA
Communication period
5, 15, 30 minutes, 1, 6, 12 or 24 hours
Data collection period
5, 15, 30 minutes, 1, 6, 12 or 24 hours
Antenna type
internal
Sensitivity
-138 dBm
Radio coverage within line of sight
up to 15 km
Radio coverage in restrained urban conditions
up to 5 km
Transmitter power by default
25 mW (configurable)
Maximum transmitter power
100 mW
Built-in battery
3400 mAh
Ingress protection rating
IP65
Mounting

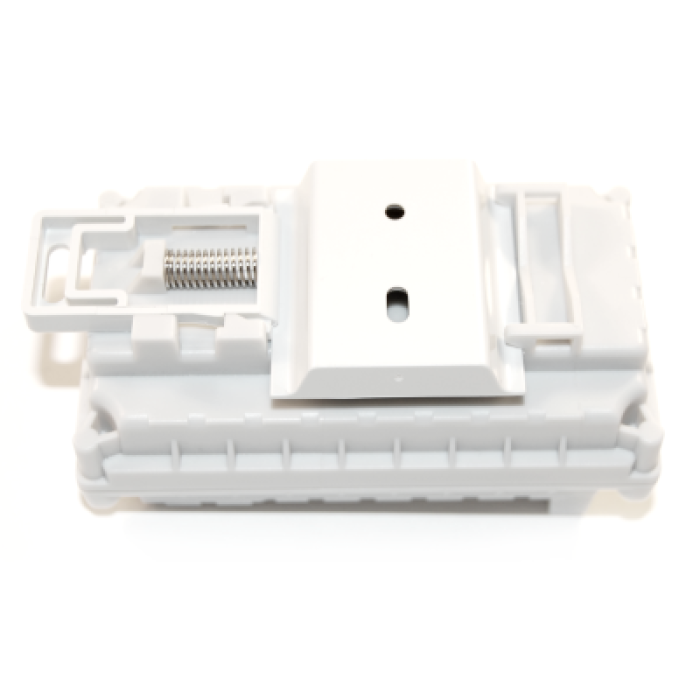

clamp fastening to the support, DIN-rail, wall-mounting
