70.20 $

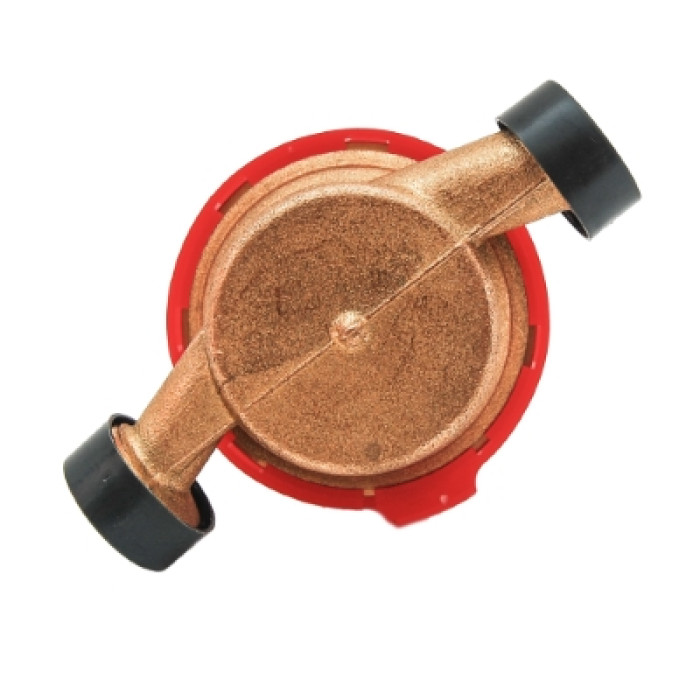

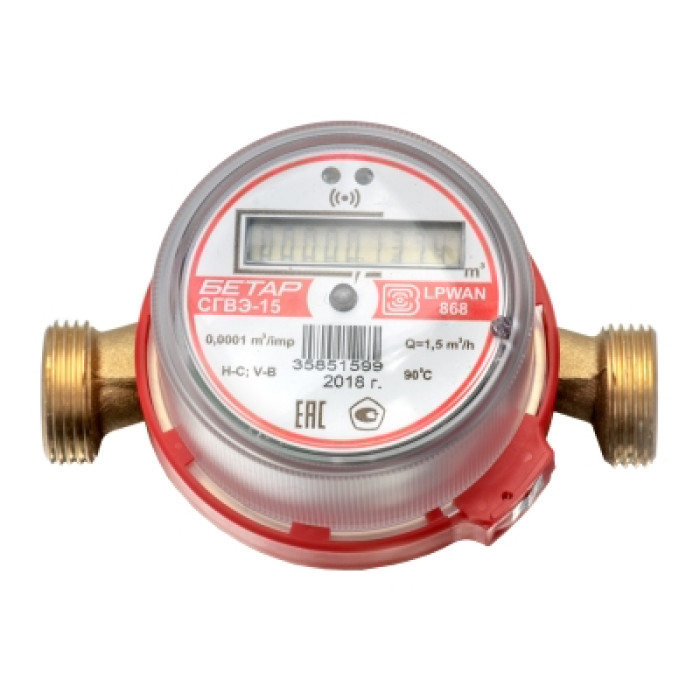

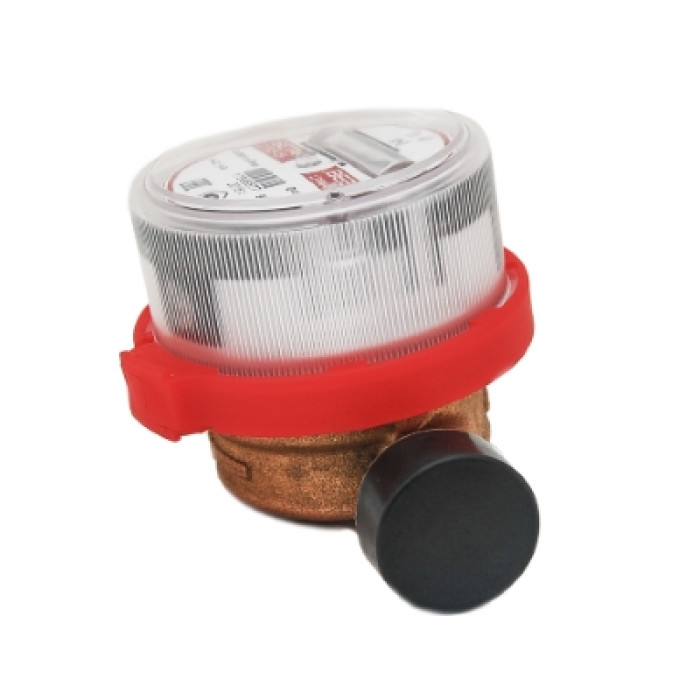

Electronic water meter Betar-Vega SHVE/SGVE

Brand: Vega Absolute
Product Code: SHVE/SGVE
SKU: SHVE/SGVE
Reviews: (0)
In Stock: 2 pcs.
70.20 $
Ex Tax: 58.50 $
Specifications: (see all)
Destination
Industrial
Sensitivity, dB/m
-138 dBm
Built-in temerature sensor
Yes
LoRaWAN® class
A
Number of LoRaWAN® channels
16
Shipping We will deliver the order in 1-2 days. Payment Pay quickly and conveniently Cumulative discounts Collect bonuses and gifts

An electronic water meter is used to account for the flow of cold and hot water with the accumulation and transfer of these readings to the LoRaWAN® network.

The function «electronic antimagnetic seal» fixes an external magnetic field and blocks the device's display.

The meters are produced in two versions: with a nominal diameter of 15 mm - SHVE-15, SGVE-15, and with a nominal diameter of 20 mm - SHVE-20, SGVE-20.

The device is powered by a 3400 mAh soldered battery with up to 8 years life up. The meter acts as a LoRaWAN® device of class A.


Features

  • Class A
  • Battery powered
  • Frequency plans: RU868, EU868, KZ865 - by default
  • Frequency plans: IN865, AS923, AU915, KR920, US915 - order option
  • Ability to set a custom frequency plan (EU868 based)
  • Undelivered packets are saved in modem memory (up to 200 entries)
  • Function «electronic antimagnetic seal»
  • Temperature measurement
  • Time referencing of readings by internal clock
  • Communication period - every 1, 6, 12, 24 hours
  • Data collection period - every 1, 6, 12, 24 hours
  • ADR support (Adaptive Data Rate)
  • Sending of confirmed packets (configurable)
  • OTAA or ABP activation (configurable)
  • Two operating modes «Active» and «Storage»
  • Locking the display when the external magnetic field is applied for a long time
  • Charge measuring of the built-in battery
  • Sensitivity: up to -138dBm
  • Alignment via optoport with Vega LoRaWAN Configurator application
Characteristics
Destination
Industrial
Sensitivity, dB/m
-138 dBm
Built-in temerature sensor
Yes
LoRaWAN® class
A
Number of LoRaWAN® channels
16
Activation type
ABP or OTAA
Communication period
5, 15, 30 minutes, 1, 6, 12 or 24 hours
Data collection period
5, 15, 30 minutes, 1, 6, 12 or 24 hours
Antenna type
Internal
Radio coverage within line of sight
up to 15 km
Radio coverage in restrained urban conditions
up to 5 km
Transmitter power by default
25 mW (configurable)
Ingress protection rating
IP54
Technical specifications
Battery Type
3600 mAh (SAFT)
