112.32 $

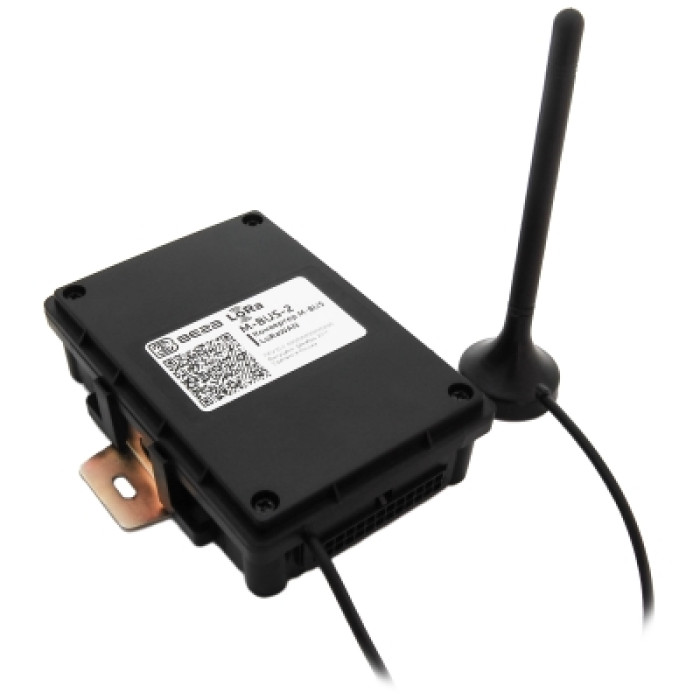

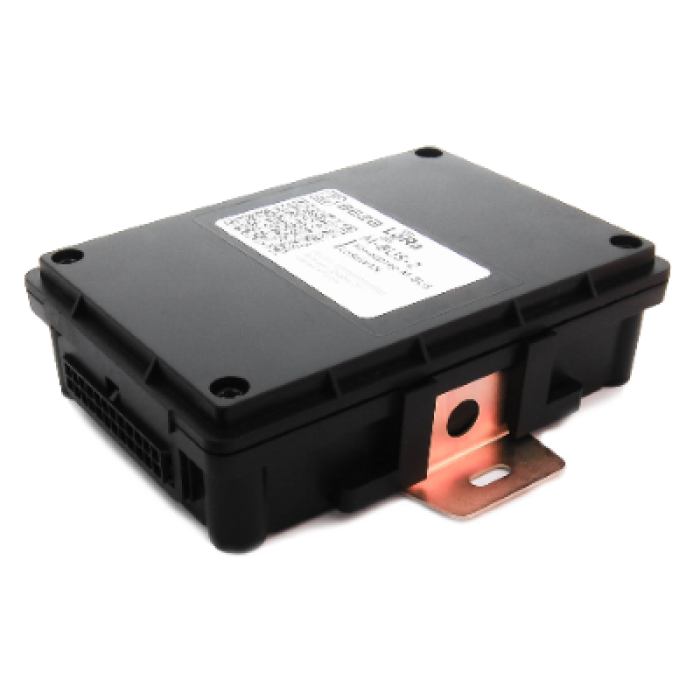

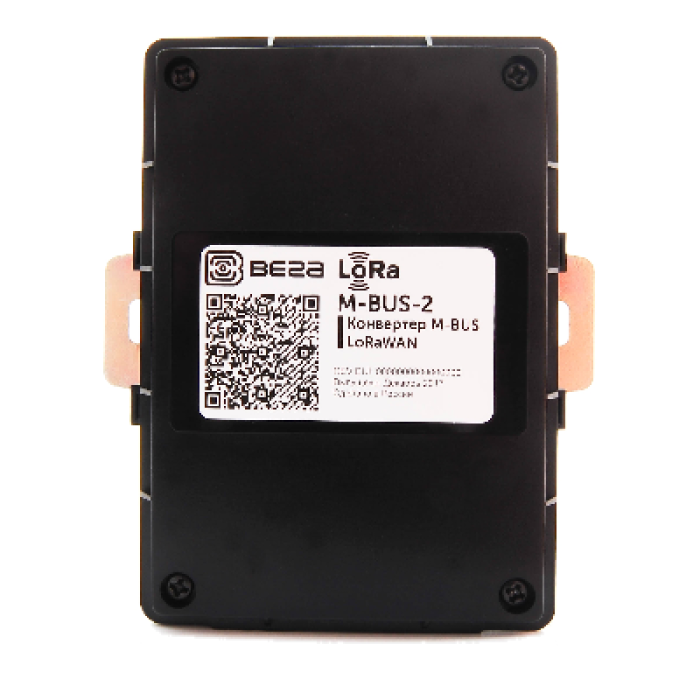

Converter M-BUS to LoRaWAN

Product Code: M-BUS-2
SKU: M-BUS-2
Reviews: (0)
Pre-Order
112.32 $
Ex Tax: 93.60 $
Specifications: (see all)
Antenna connector
SMA
M-BUS interface
1
Quantity of the connected M-BUS devices
no more than 10
USB-port
mini-USB, type B
Operating temperatures, °С
-40…+85
Shipping We will deliver the order in 1-2 days. Payment Pay quickly and conveniently Cumulative discounts Collect bonuses and gifts

The Vega M-BUS-2 converter is designed for reading data from devices with M-BUS interface with subsequent accumulation and transfer of this information via LoRaWAN® protocol to the gateway by means of radio communication at frequencies of the range 860-1000 MHz.

The battery for the converter is an irreplaceable battery, designed for a lifetime of up to 10 years.

Converter M-BUS-2 may operate in the independent poll mode of the metering devices and can be used only with the next supported devices:


  • Heat meter «Teplouchet-1»
  • Heat meter «STE 21 «Berill»
  • Heat meter «Danfoss Sonometer 500»
  • Heat meter «ELF-M Тепловодомер»
  • Heat meter «WESER Heat Meter»
  • Heat meter «Kamstrup Multical 801»
  • Heat meter «Kamstrup Multical 402»
Characteristics
Antenna connector
SMA
M-BUS interface
1
Quantity of the connected M-BUS devices
no more than 10
USB-port
mini-USB, type B
Operating temperatures, °С
-40…+85
Built-in temerature sensor
yes
LoRaWAN® class
A
Number of LoRaWAN® channels
16
Frequency plan (depend on choosed firmware)
RU868, EU868, IN865, AS923, AU915, KR920, US915, KZ865, custom (EU868 based)
Activation type
ABP or OTAA
Communication period
5, 15, 30 minutes, 1, 6, 12 or 24 hours
Data collection period
5, 15, 30 minutes, 1, 6, 12 or 24 hours
Sensitivity
-138 dBm
Radio coverage within line of sight
up to 15 km
Radio coverage in restrained urban conditions
up to 5 km
Transmitter power by default
25 mW (configurable)
Maximum transmitter power
100 mW
Built-in battery
6400 mAh
Ingress protection rating
IP54
Mounting
with screws
