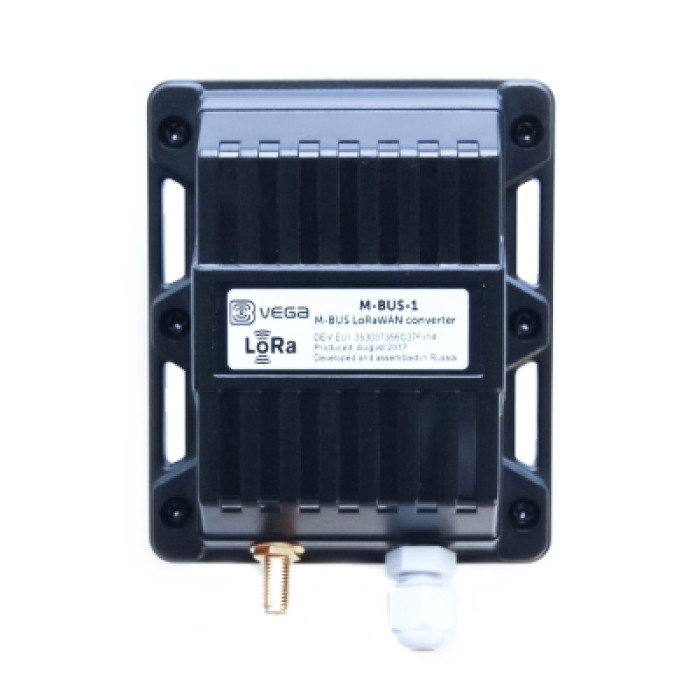

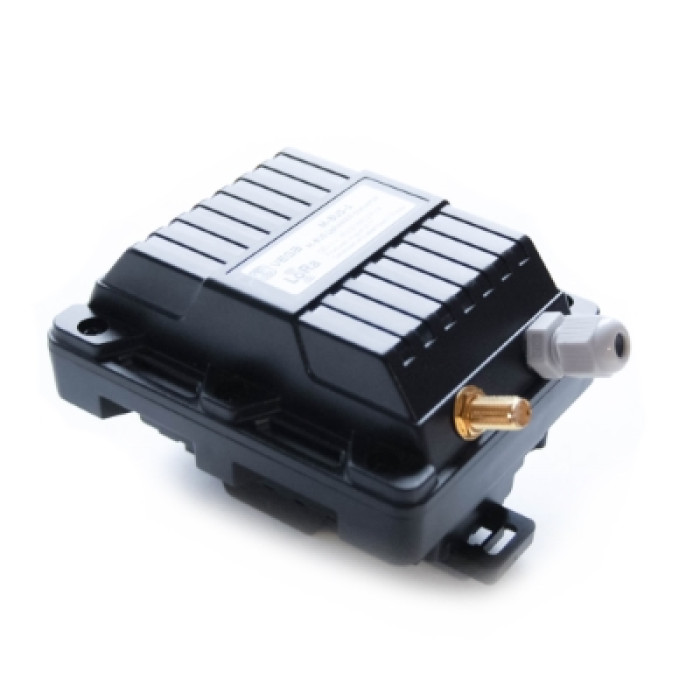

M-BUS to LoRaWAN® converter Vega M-BUS-1

Brand: Vega Absolute
Product Code: PS110556
SKU: M-BUS-1
Reviews: (0)
In Stock: 1 pcs.
123.24 $
Ex Tax: 102.70 $
Specifications: (see all)
Antenna connector
SMA
Destination
Industrial
M-BUS interface
1
Quantity of the connected M-BUS devices
no more than 10
Open-drain outputs
2
Shipping We will deliver the order in 1-2 days. Payment Pay quickly and conveniently Cumulative discounts Collect bonuses and gifts

The Vega M-BUS-1 converter is designed for reading data from devices with M-BUS interface with subsequent accumulation and transfer of this information via LoRaWAN® protocol to the gateway by means of radio communication at frequencies of the range 860-1000 MHz.

The battery for the converter is an irreplaceable battery, designed for a lifetime of up to 10 years. With battery power, the converter operates as Class A LoRaWAN® device. The converter can operate from an external power source with a voltage of 10 ... 36 V. In that case, the converter operates as Class C device.

In addition, the M-BUS-1 converter has two security inputs that trigger the alarm message to the gateway.

Converter M-BUS-1 may operate in two modes. Converter can be used for any utilities’ meters and industrial equipment with M-BUS interface while it operates in the transparent mode. But in the independent poll mode of the metering devices converter can be used only with the next supported devices:

  • Heat meter «Teplouchet-1»
  • Heat meter «STE 21 «Berill»
  • Heat meter «Danfoss Sonometer 500»
  • Heat meter «ELF-M Teplovodomer»
  • Heat meter «WESER Heat Meter»
  • Heat meter «Kamstrup Multical 801»
  • Heat meter «Kamstrup Multical 402»
  • Heat meter «Landis Gir»

The list of supported meters is depend on firmware version, so you should clarify the issue of support for a particular meter when ordering.

Characteristics

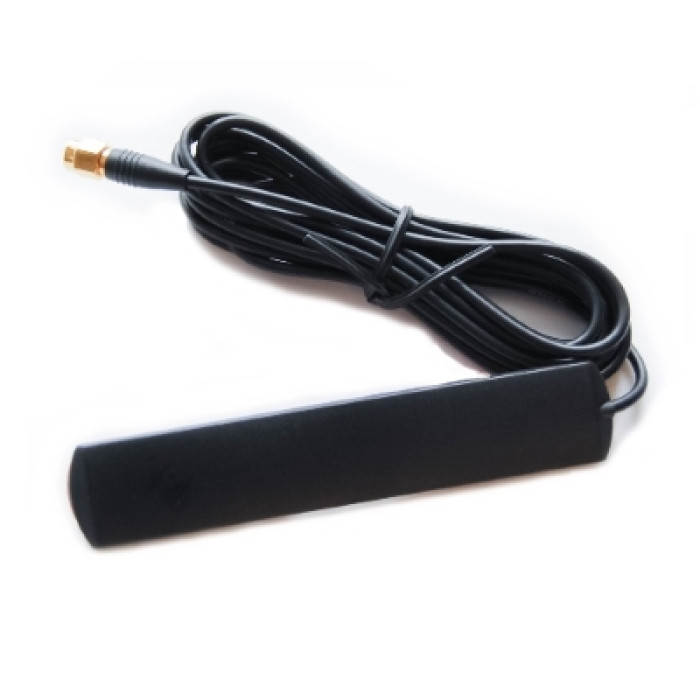

Antenna connector
SMA
Destination
Industrial
M-BUS interface
1
Quantity of the connected M-BUS devices
no more than 10
Open-drain outputs
2
Security inputs
2
Security inputs
2
USB-port
mini-USB, type B
Operating temperatures, °С
-40…+85
Built-in temerature sensor
yes
LoRaWAN® class
A or C depending on the presence of the external power supply
Number of LoRaWAN® channels
16
Frequency plan (depend on choosed firmware)
RU868, EU868, IN865, AS923, AU915, KR920, US915, KZ865, custom (EU868 based)
Activation type
ABP or OTAA
Communication period
5, 15, 30 minutes, 1, 6, 12 or 24 hours
Data collection period
5, 15, 30 minutes, 1, 6, 12 or 24 hours
Sensitivity
-138 dBm
Radio coverage within line of sight
up to 15 km
Radio coverage in restrained urban conditions
up to 5 km
Transmitter power by default
25 mW (configurable)
Maximum transmitter power
100 mW
Built-in battery
6400 mAh
External power
10...36 V
Ingress protection rating
IP65

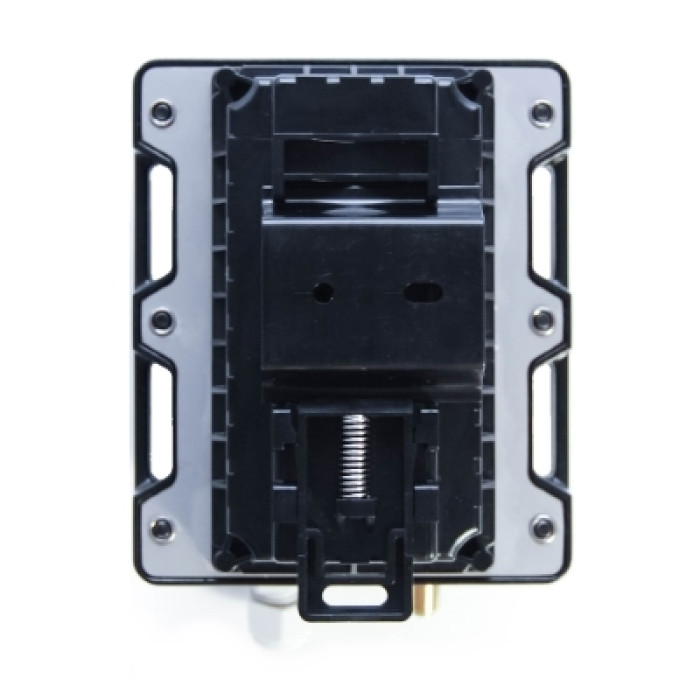

Mounting
clamp fastening to the support, DIN-rail, wall-mounting
