90.48 $

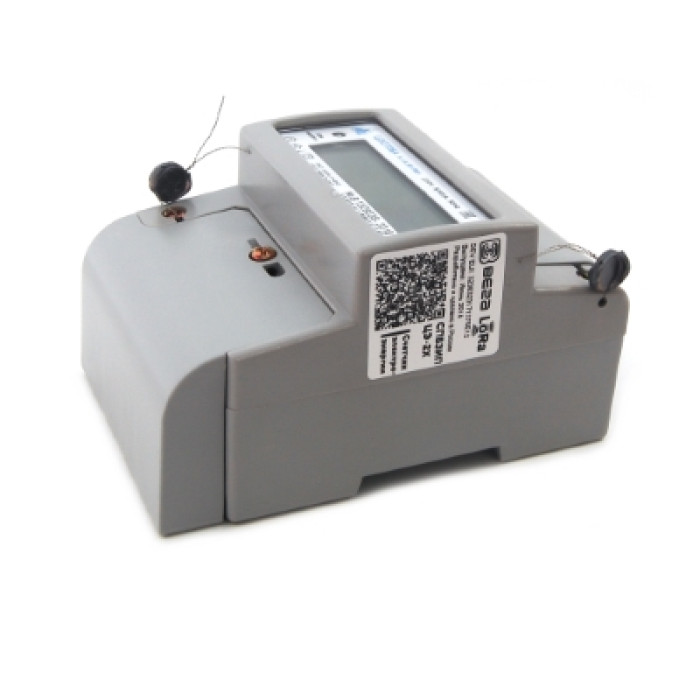

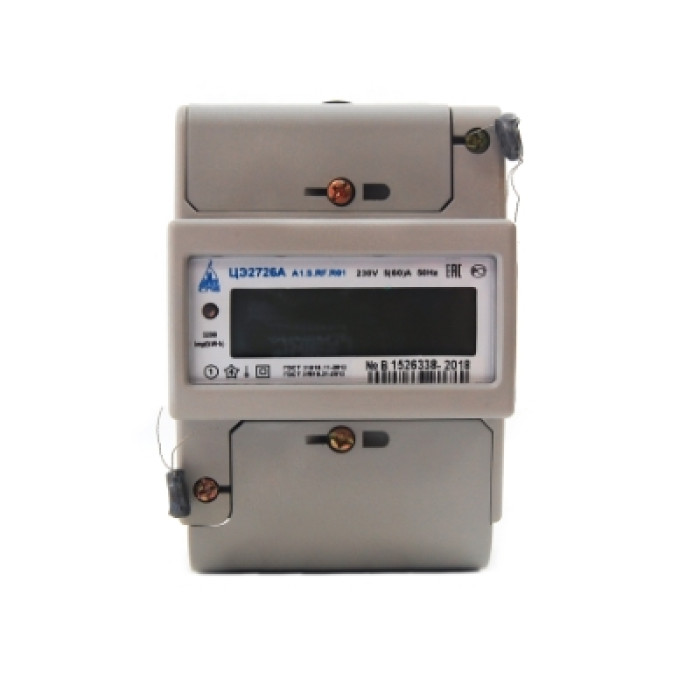

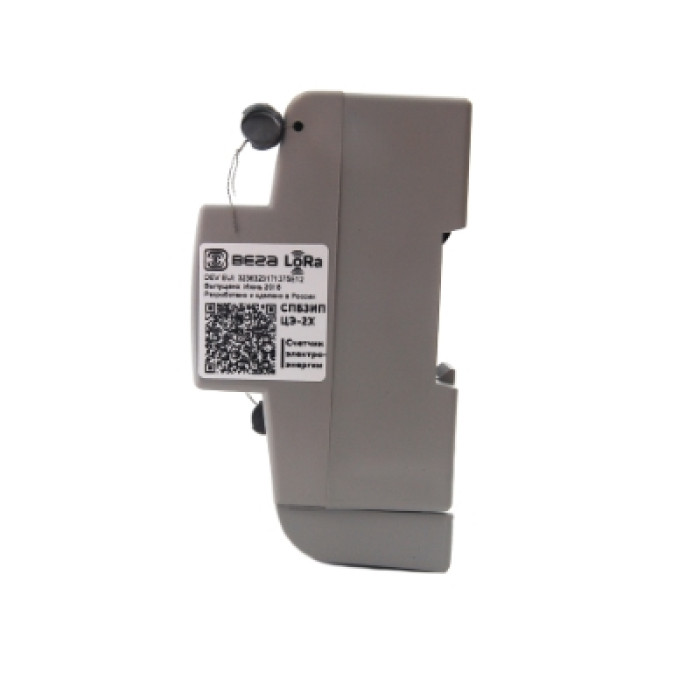

Electricity meter CE2726A R01

Electricity meter CE2726A R01
Electricity meter CE2726A R01
Electricity meter CE2726A R01
Electricity meter CE2726A R01
Electricity meter CE2726A R01
Electricity meter CE2726A R01
Brand: Vega Absolute
Product Code: CE2726A-R01
SKU: CE2726A-R01
Reviews: (0)
Pre-Order
90.48 $
Ex Tax: 75.40 $
Specifications: (see all)
External power
220, 230 V
Nominal (maximum) current
5(60) А
Nominal network frequency
50 Hz
Number of tariffs
up to 4
Sensitivity (for directly switching meters) at % from In
0.4 %
Shipping We will deliver the order in 1-2 days. Payment Pay quickly and conveniently Cumulative discounts Collect bonuses and gifts

An electronic electricity meter are designed for multi-tariff (up to 4 tariffs) energy metering in single-phase AC networks with a rated frequency of 50 Hz.

The radio module is installed inside, which accumulates and transmits information about the readings to the LoRaWAN® network.

The meter acts as a LoRaWAN® device of class C.

Characteristics
External power
220, 230 V
Nominal (maximum) current
5(60) А
Nominal network frequency
50 Hz
Number of tariffs
up to 4
Sensitivity (for directly switching meters) at % from In
0.4 %
The accuracy class
1
The total (active) power consumed in the meter voltage circuit
10.0(2.0) V·А (W)
Total power consumed in the current circuit
0.5 V·А
Weight
1 kg
Сounter constant
3200, 6400 pls/kW·h
Operating temperatures, °С
-40…+60 °С
LoRaWAN® class
C
Number of LoRaWAN® channels
16
Frequency plan (depend on choosed firmware)
RU868
Activation type
OTAA
Communication period
1 hours (configurable)
Data collection period
2 hours (configurable)
Antenna type
internal
Sensitivity
-138 dBm
Radio coverage within line of sight
up to 15 km
Radio coverage in restrained urban conditions
up to 5 km
Transmitter power by default
25 mW
Ingress protection rating
IP51
