Gateway Vega BS-2.2

Brand: Vega Absolute
Product Code: PS110562
SKU: BS-2.2
Reviews: (0)
In Stock: 1 pcs.
865.63 $
Ex Tax: 721.36 $
Specifications: (see all)
3G modem
yes
Antenna connector
N-Type female
Destination
Industrial
Frequency plan
863-870 MHz
GPS receiver
yes witn built-in antenna
Shipping We will deliver the order in 1-2 days. Payment Pay quickly and conveniently Cumulative discounts Collect bonuses and gifts

Vega BS-2.2 gateway is designed to deploy LoRaWAN® network within 863-870 MHz frequency plan. The gateway is powered and communicates with the server via the Ethernet channel, moreover the gateway may communicate with the server via the 3G channel. Linux operating system. Vega BS-2.2 gateway is supplied with pre-installed Packet forwarder software.
It is recommended to use the antenna A10-868 produced by «Firma «Radial»

Characteristics
3G modem
yes
Antenna connector
N-Type female
Destination
Industrial
Frequency plan
863-870 MHz
GPS receiver
yes witn built-in antenna
Operating system
Linux
Power consumption
no more than 5 W
Power supply type
Passive POE 4.5(+) 7.8(-) 15W
Server communication link
Ethernet, GSM 3G
USB-port
yes
Operating temperatures, °С
-40…+70
Number of LoRaWAN® channels
8
Radio coverage within line of sight
up to 15 km
Radio coverage in restrained urban conditions
up to 5 km
Transmitter power by default
up to 500 mW (27 dBm)
External power
12...48 V
Ingress protection rating
IP67

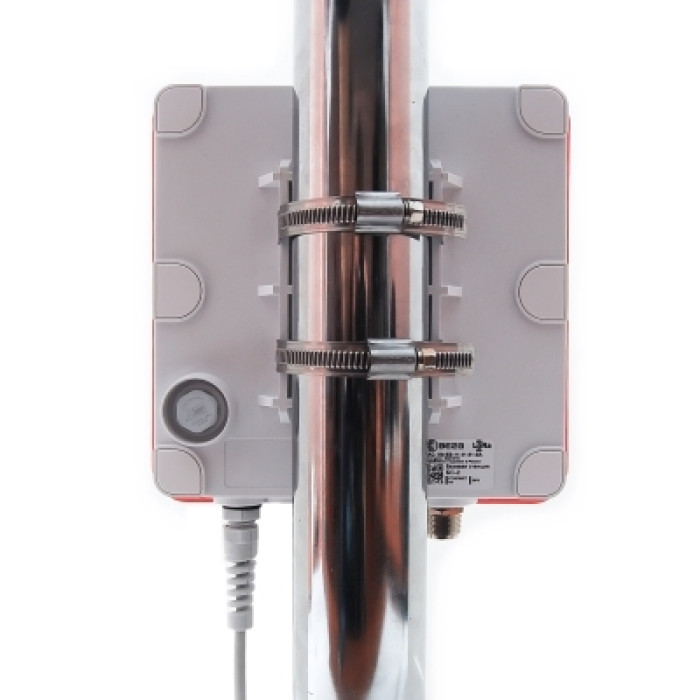

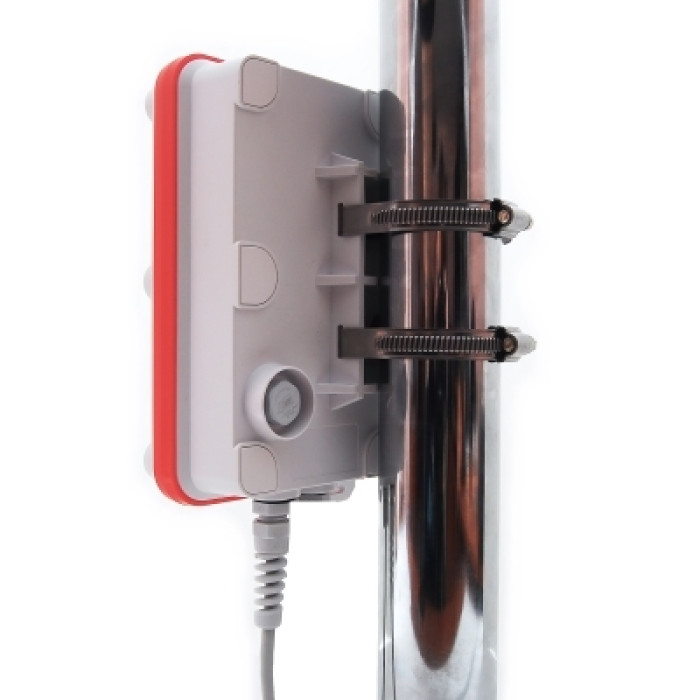

Mounting
mast supports
