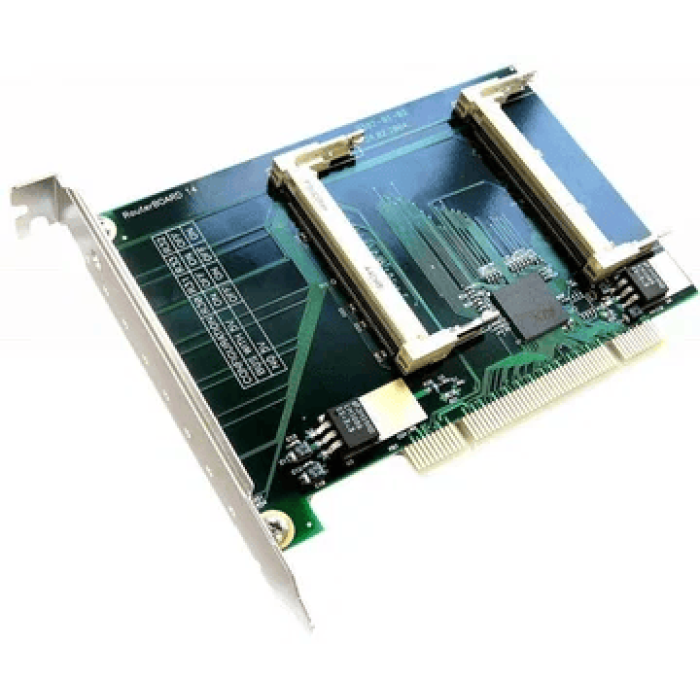

The MikroTik RouterBOARD 14 (RB/14) is a passive hardware adapter with four MiniPCI slots in standard PCI card form factor, designed for installing MiniPCI wireless modules into systems with standard 3.3V PCI sockets. It is used in network infrastructures where MiniPCI modules need to be integrated into servers or equipment with standard PCI slots, with no software drivers required.

The adapter provides four MiniPCI v1.0 slots compliant with PCI v2.1 and v2.2 standards, with support for PCI 3.3V and 5V operating voltages. Each MiniPCI slot supplies up to 2.5W of 3.3V power to the installed module. Two LEDs per MiniPCI slot, connected according to the standard, provide visual status indication for each installed module. The 96 × 140 × 16 mm dimensions (22 mm longer when loaded with modules) and the absence of driver requirements simplify integration into existing systems.

The operating temperature range of 0°C to +70°C is suited for rack or climatized server enclosure installations. The adapter requires no drivers and is compatible with most standard MiniPCI modules, with the exception of SR5, XR5, SR2, and XR2 high-power MiniPCI modules.

Recommended for network integrators and operators building or maintaining multi-radio systems based on MiniPCI modules in platforms with standard PCI slots, as well as for existing infrastructures where expanding the number of radio interfaces is achieved through this adapter platform.
