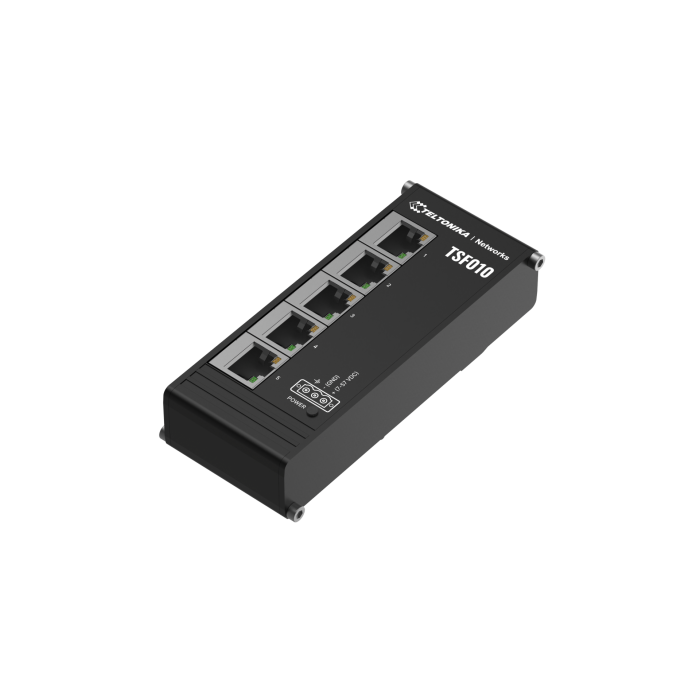

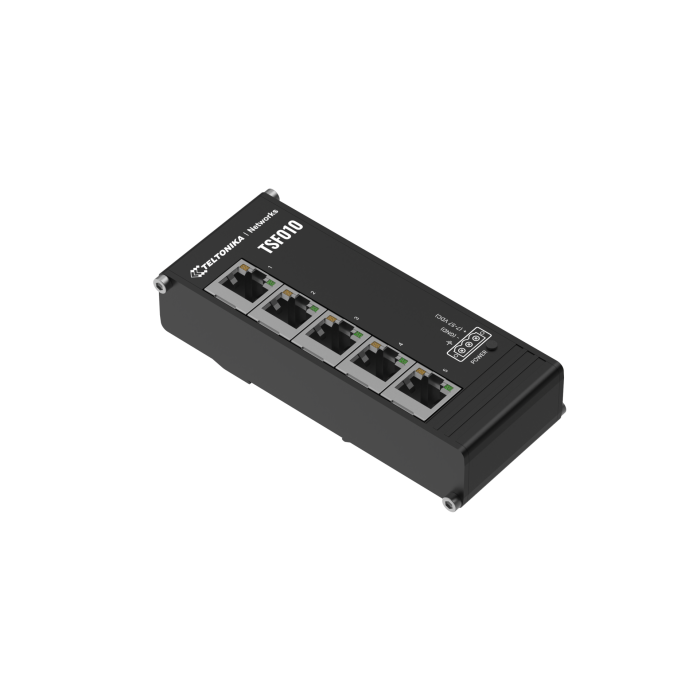

Teltonika TSF010 — Flat Industrial Unmanaged Ethernet Switch 5x 10/100 Mbps for Control Cabinets

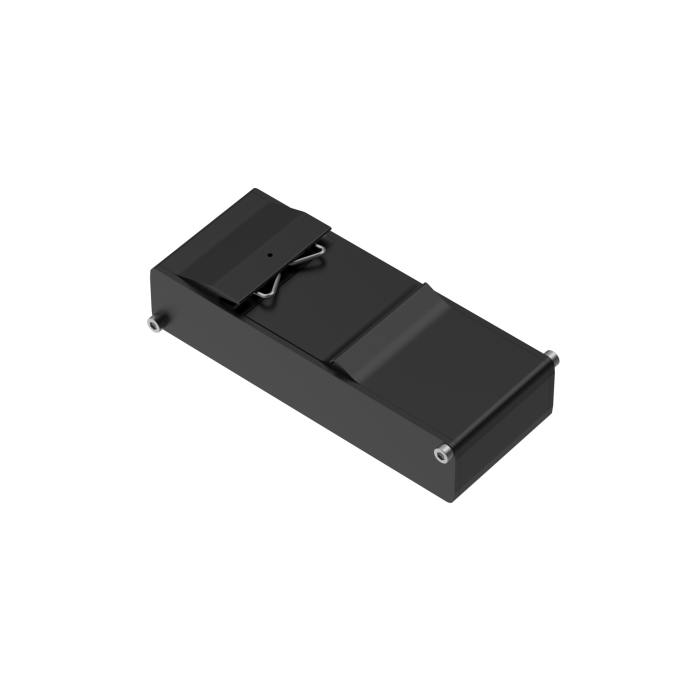

Unmanaged Ethernet switches in a flat profile form factor with integrated DIN rail mounting are the baseline connectivity solution for industrial automation cabinets where shallow enclosure depth and plug-and-play deployment are hard project constraints — and the Teltonika TSF010 is designed specifically for this installation format. Providing 5 ports at 10/100 Mbps in an anodized aluminum housing measuring 113 × 28 × 50 mm and weighing just 142 g, the TSF010 is deployed in control panels, distribution boards, and OEM equipment enclosures where the flat profile enables mounting in spaces with minimal available depth and the network must operate without any configuration intervention.

Non-blocking switching at 10 Gbps with a 128 KB packet buffer and jumbo frame support up to 9216 bytes ensures consistent performance for traffic between connected industrial devices. The 3-pin industrial power connector accepts both DC input across the wide 7–57 VDC range and AC input at 12–40 VAC 50/60 Hz (available via specific order code), providing maximum integration flexibility across diverse industrial power infrastructures. Built-in overvoltage protection to 60 V, reverse polarity protection to 80 V, and transient surge protection ensure reliable operation in electrically noisy industrial environments. Maximum power consumption of 1.5 W places minimal demand on installation power budgets.

TSF010 operates plug-and-play with no additional configuration required, eliminating dependency on networking expertise during field commissioning. Profinet Class A conformance via optional order code provides native compatibility with industrial automation ecosystems built on this standard. The 50 mm enclosure depth differentiates the TSF010 from conventional industrial switches and enables installation in electrical distribution boards and control panels where available depth is under 100 mm — a common constraint in existing industrial installation retrofits.

This switch is well-suited for automation system integrators installing Ethernet switches in shallow electrical boards and low-depth cabinets, equipment manufacturers embedding Ethernet connectivity into OEM solutions with strict depth constraints, OT teams deploying field networks in energy, utilities, and industrial infrastructure environments, and organizations requiring an unmanaged industrial switch with comprehensive electrical protections and verified operation across the full -40 °C to +75 °C temperature range. The Teltonika TSF010 addresses installations where flat profile, integrated electrical protections, and zero-configuration deployment are simultaneous industrial project requirements.
