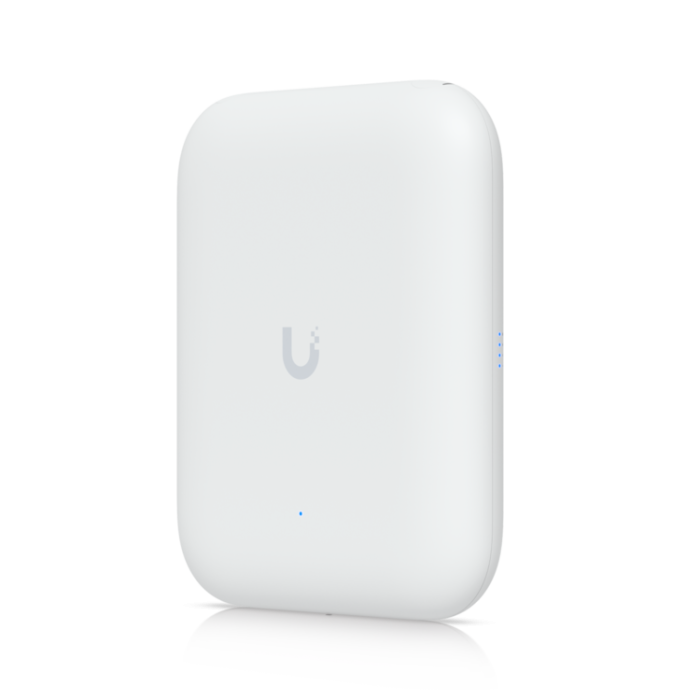

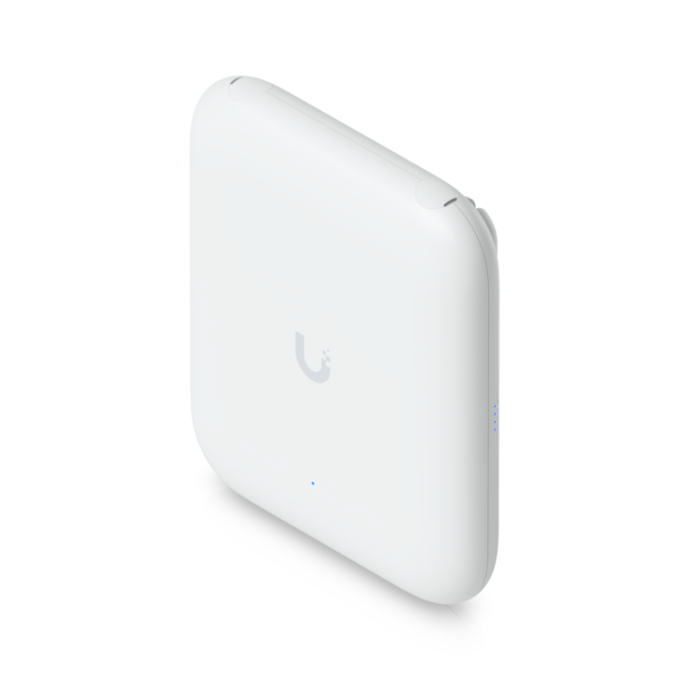

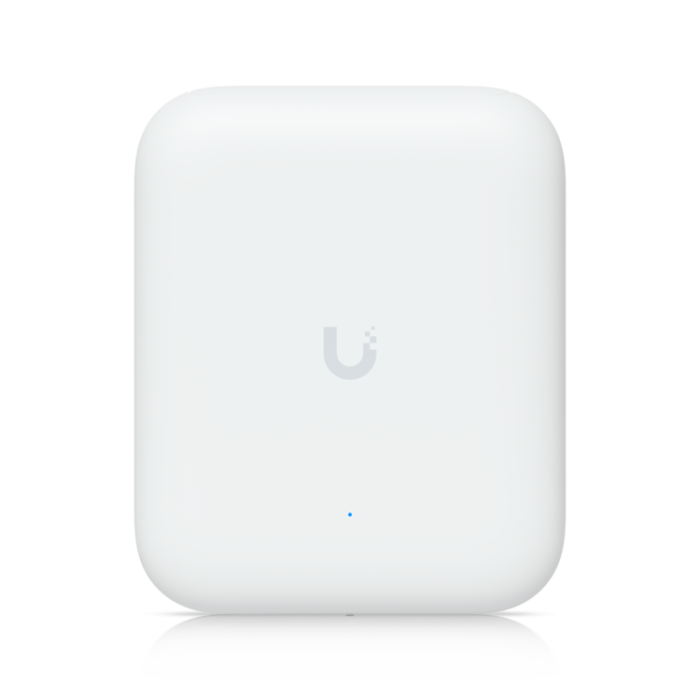

Ubiquiti U7 Outdoor (U7-Outdoor) is a WiFi 7 weatherproof access point with IPX6 protection designed for outdoor deployments in extreme weather conditions.

With 4 spatial streams (2×2 on 5 GHz, 2×2 on 2.4 GHz) and combined speeds up to 5 Gbps (4.3 Gbps on 5 GHz BW240, 688 Mbps on 2.4 GHz), U7 Outdoor delivers fast WiFi connectivity for 250+ simultaneous clients over 465 m² (5,000 ft²) coverage. Directional internal antenna (5 GHz: 12.5 dBi 45°×45°, 2.4 GHz: 8 dBi 90°×90°) plus 2 external omni antennas (5 GHz: 4 dBi 360°, 2.4 GHz: 3 dBi 360°) with 2 RP-SMA connectors for maximum flexibility. 2.5 GbE uplink, PoE+ power (19W max), 74.6 N wind loading at 200 km/h, and -30 to 60°C operating temperature. Wall or pole mounting (mounts included, 25-60mm diameter).

Key Specifications:
- WiFi Standard: WiFi 7 (802.11be)
- Spatial Streams: 4 (2×2 + 2×2)
- Coverage: 465 m² (5,000 ft²)
- Weatherproofing: IPX6
- Dimensions: 170 × 208 × 54.5 mm
- Weight: 1.2 kg

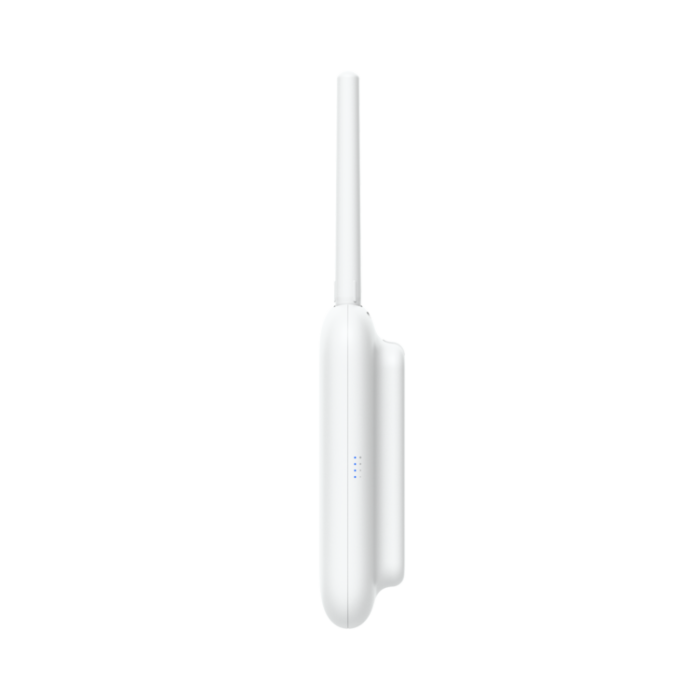

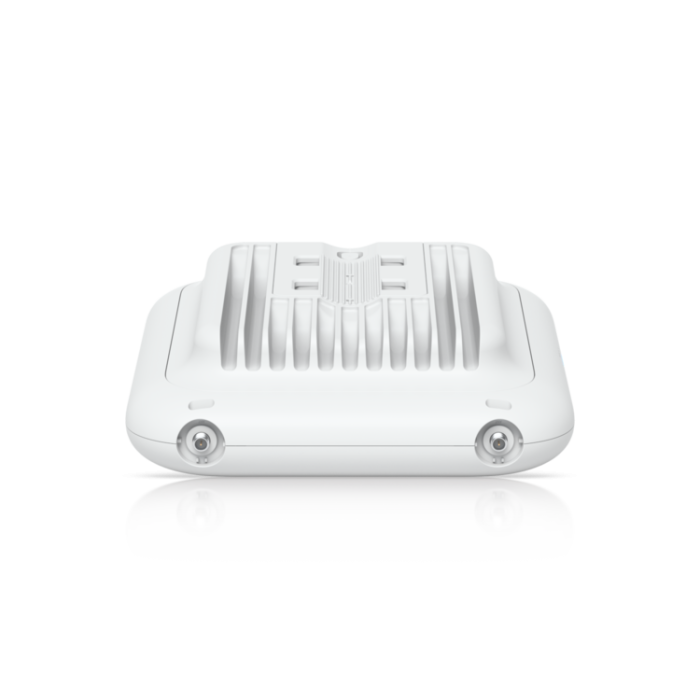

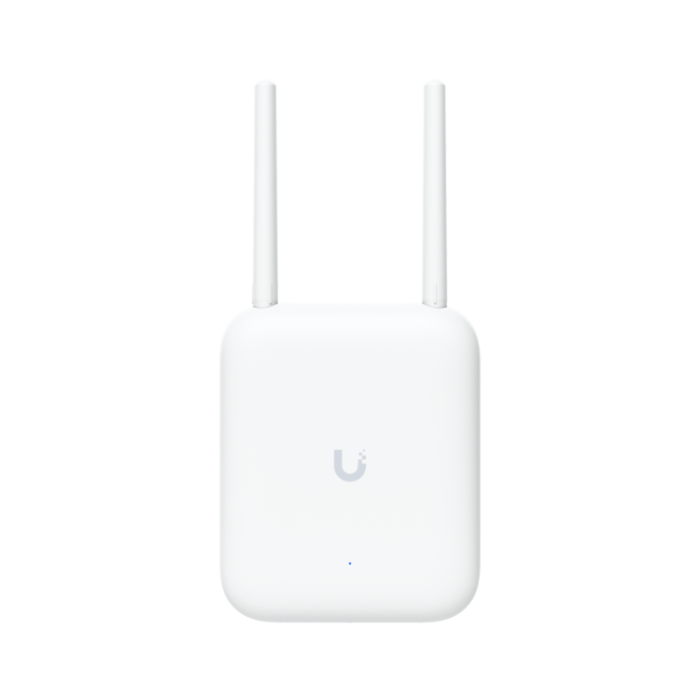

- Antennas: Directional internal + 2× external omni + 2× RP-SMA
- Antenna Gain: 5 GHz: 12.5 dBi (internal) / 4 dBi (external), 2.4 GHz: 8 dBi (internal) / 3 dBi (external)
- Beamwidth: 5 GHz: 45°, 2.4 GHz: 90°
- Max TX Power: 5 GHz: 26 dBm, 2.4 GHz: 23 dBm

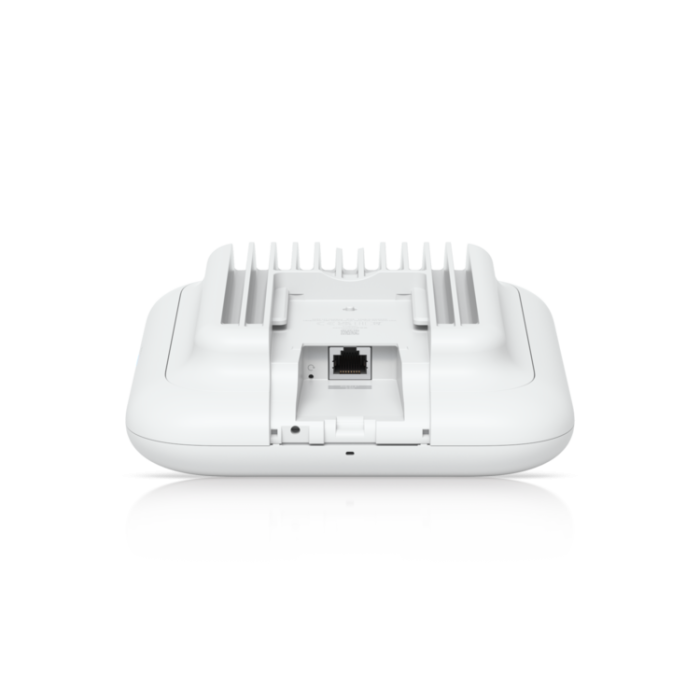

- Uplink: 2.5 GbE
- Power: PoE+ (42.5-57V DC), 19W max
- Wind Loading: 74.6 N at 200 km/h

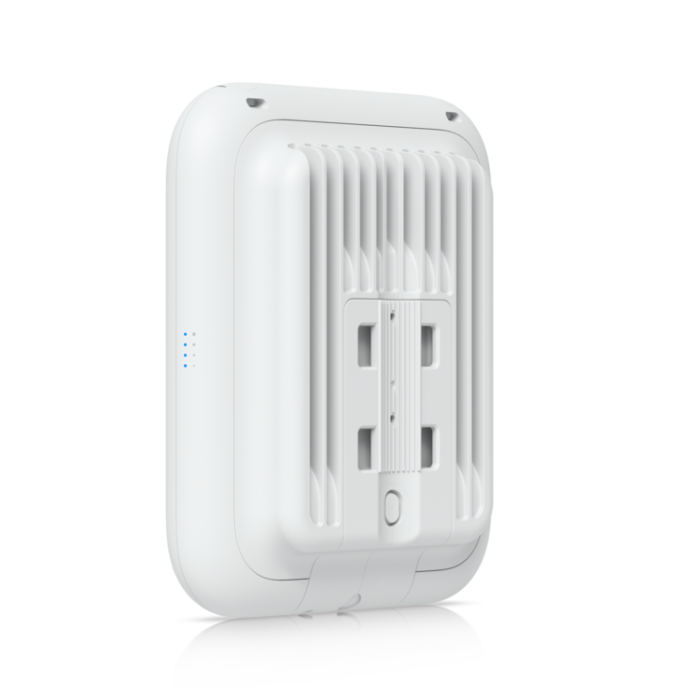

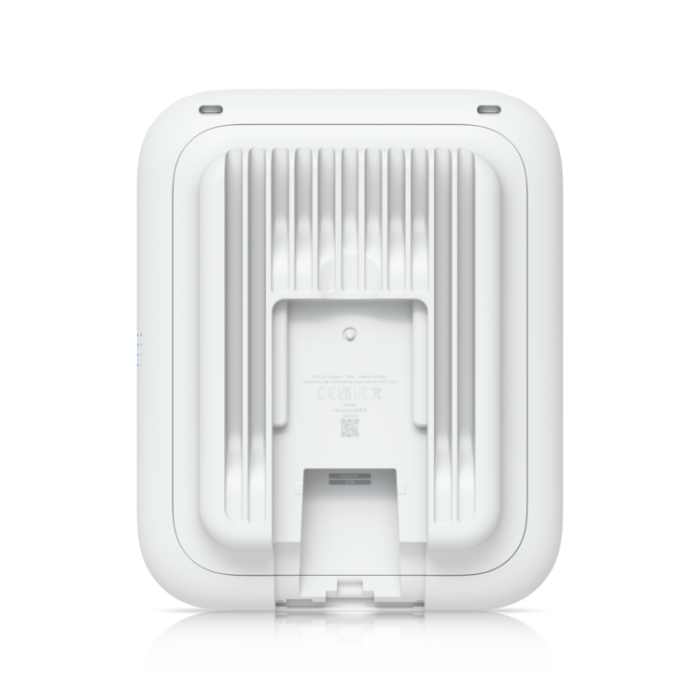

- Mounting: Wall, Pole (25-60mm, mounts included)
- Features: Wireless Meshing, Band Steering, 802.11v/r/k, Captive Portal, PPSK, RADIUS over TLS
- Management: UniFi Network v8.2.93+
- Operating Temperature: -30 to 60°C
- Certifications: CE, FCC, IC, NDAA Compliant

Ideal for: outdoor patios and yards for restaurants/cafes, parking lots and vehicle access areas, campuses and outdoor educational facilities, parks and public spaces, outdoor wireless mesh deployments, industrial zones and outdoor warehouses, installations requiring performant WiFi 7 in extreme weather conditions, and any outdoor environment where reliable WiFi coverage is essential with maximum antenna flexibility.
