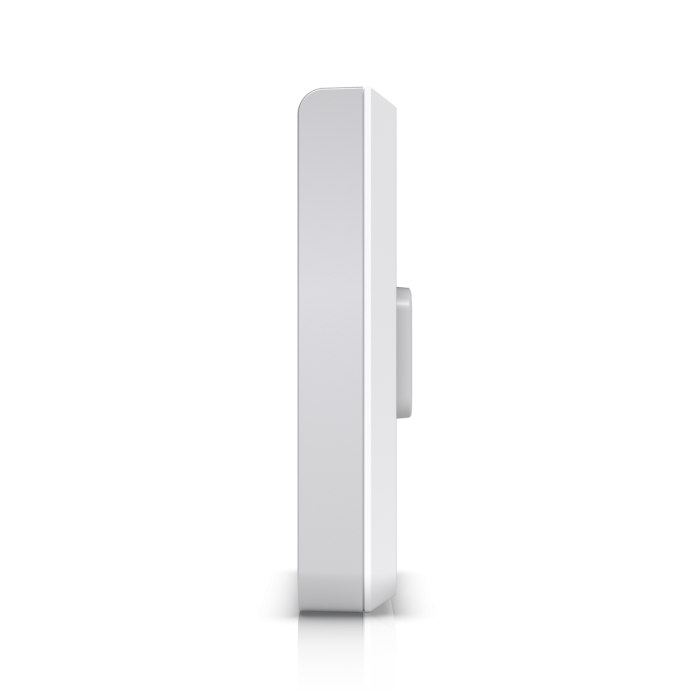

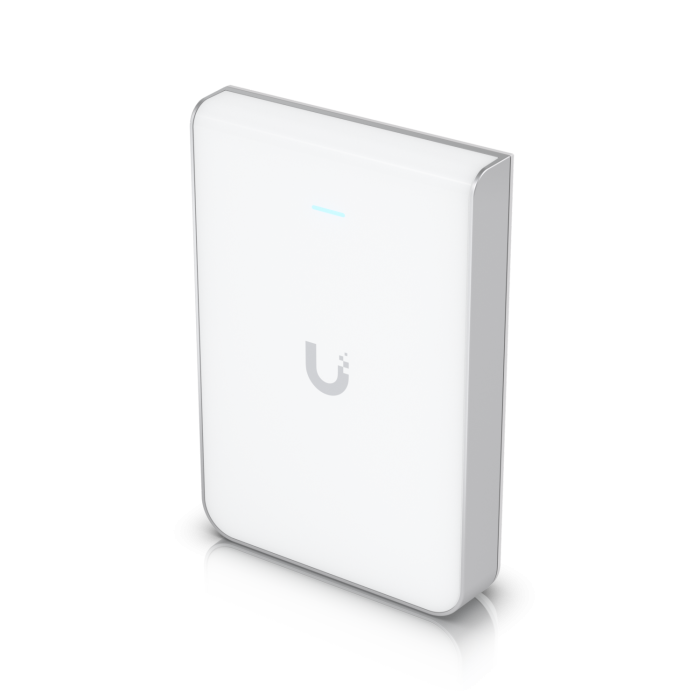

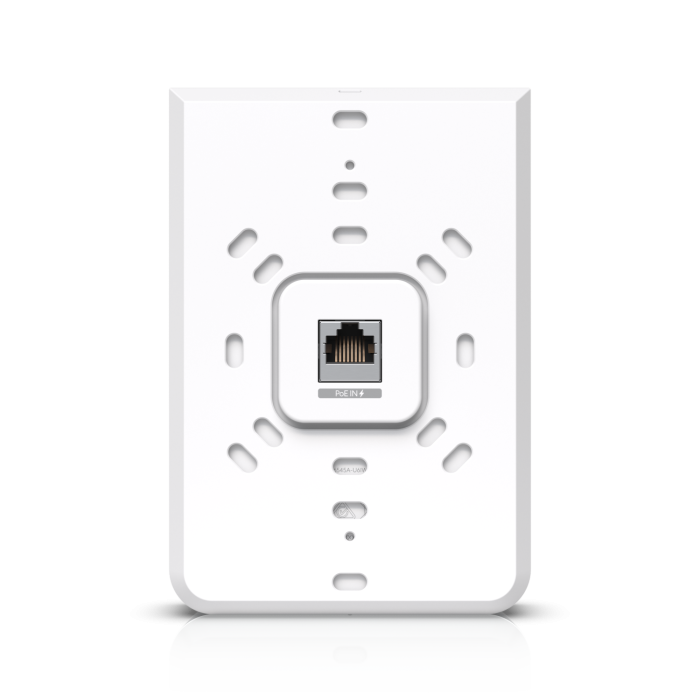

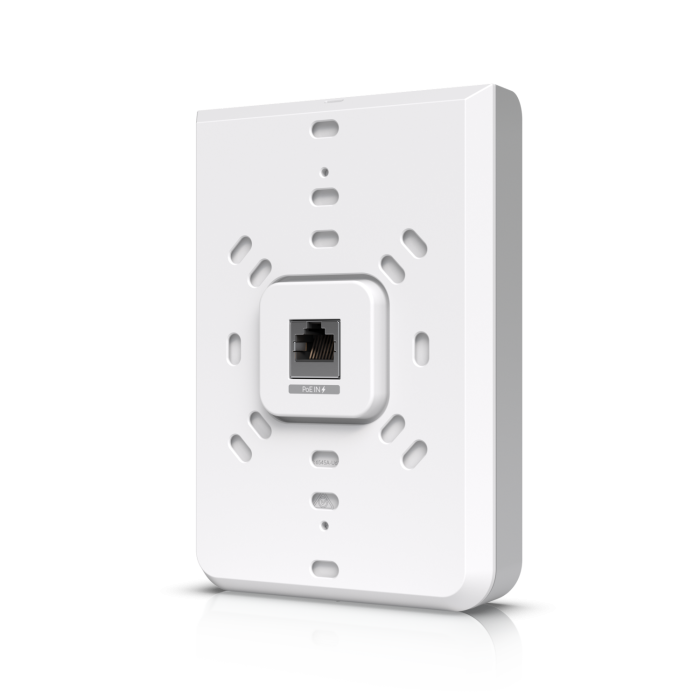

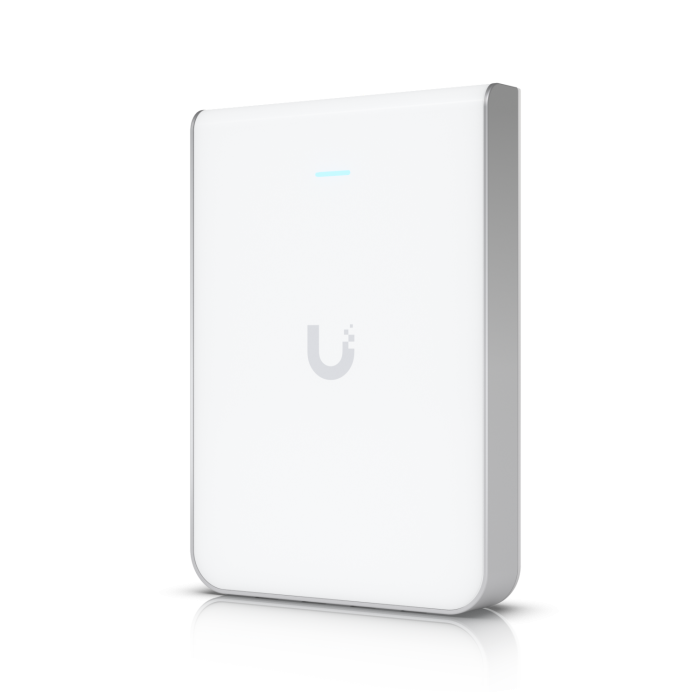

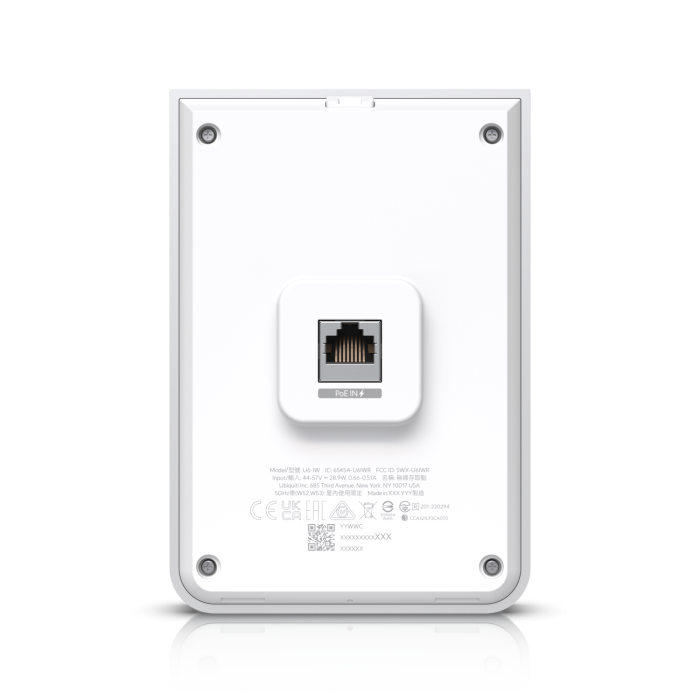

Ubiquiti U6 In-Wall – WiFi 6 SMB Access Point

Ubiquiti U6 In-Wall (U6-IW) is an in-wall WiFi 6 access point with built-in switch designed for hospitality, residential, and commercial installations.

With 6 spatial streams (4×4 on 5 GHz, 2×2 on 2.4 GHz) and combined speeds up to 5.4 Gbps (4.8 Gbps on 5 GHz BW160, 573.5 Mbps on 2.4 GHz), U6 In-Wall delivers fast WiFi connectivity for 250+ simultaneous clients. The built-in 4-port Gigabit Ethernet switch (with 1 PoE output port) enables direct in-room wired device connectivity, eliminating the need for separate switches. Coverage of 115 m² (1,250 ft²) and wall mounting (mount included) make it the ideal solution for hotels, dormitories, apartments, and offices.

Key Specifications:
- WiFi Standard: WiFi 6 (802.11ax)
- Spatial Streams: 6 (4×4 + 2×2)
- Dimensions: 139.7 × 96 × 31.2 mm
- Mounting: Wall (mount included)

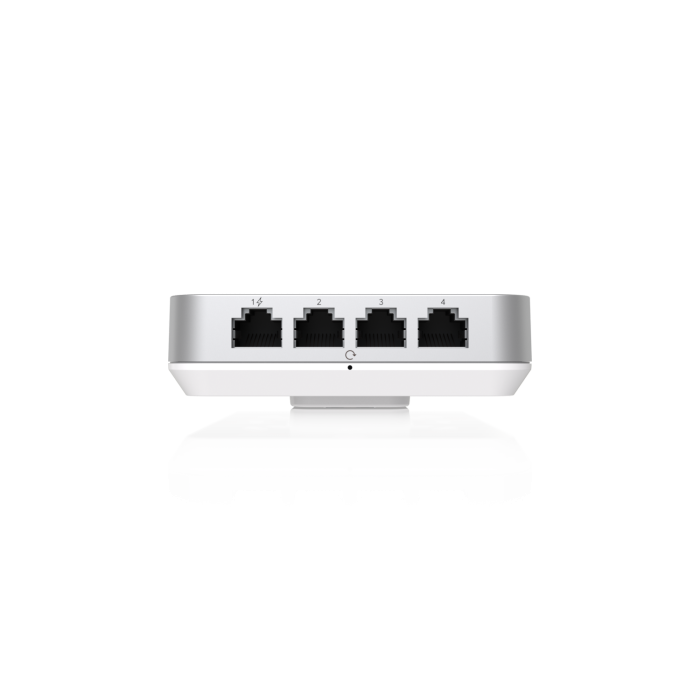

- Built-in switch: 4 GbE ports (1 with PoE output)
- Antenna Gain: 5 GHz: 5.9 dBi, 2.4 GHz: 5 dBi
- Max TX Power: 5 GHz: 26 dBm, 2.4 GHz: 22 dBm
- Power consumption: 13W (excluding PoE output)
- Features: Wireless Meshing, Band Steering, 802.11v/r/k, Captive Portal, PPSK, RADIUS over TLS
- Management: UniFi Network v6.0.45+, Ethernet + Bluetooth
- Operating Temperature: -30 to 60°C
- Certifications: CE, FCC, IC, NDAA Compliant

Ideal for: hotel rooms with WiFi and Ethernet ports for devices, dormitories and university campuses, apartments and residential complexes, small offices and commercial spaces, installations requiring WiFi + switch in the same device, deployments needing PoE output for additional devices (IP cameras, phones), and any environment benefiting from fast WiFi 6 access with integrated wired connectivity.
