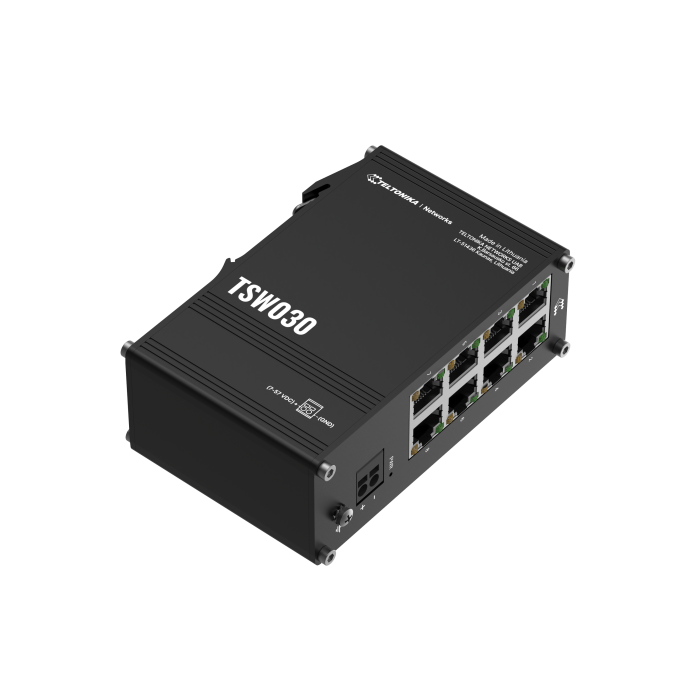

Teltonika TSW030 Industrial Ethernet Switch – 8-Port Professional Switch

TSW030 – 8-Port Industrial Ethernet Switch is a cost-efficient unmanaged switch, compact and rugged, designed for industrial applications requiring connection of up to eight devices. With eight 10/100 Mbps RJ45 ports and auto MDI/MDIX support, this plug-and-play switch offers reliable performance with low power consumption (0.5 W idle, up to 1.5 W max).

Its industrial design includes a 2-pin industrial DC power connector with overvoltage and reverse polarity protection, anodized aluminum housing, and integrated DIN rail mounting, with additional options for wall or flat surface installation. TSW030 complies with Ethernet standards 802.3i/u/ab/x/az and optionally supports Profinet Class A.

Performance features include 20 Gbps non-blocking bandwidth, 128 KB packet buffer, 2,000-entry MAC address table, and jumbo frame support up to 9216 bytes. Status LEDs (16 per port + 1 power LED) allow quick monitoring of device operation.

TSW030 is designed for harsh environments, operating at -40 °C to 75 °C and 5–95% non-condensing humidity. The housing provides IP30 protection. Certified for UL 62368-1 and C22.2 No. 62368-1 safety compliance in ordinary locations.

Ideal for: industrial automation, factories, manufacturing facilities, or any environment requiring reliable, compact, and rugged Ethernet connectivity.
