Hikvision FM11RF08-M Mifare Card — Contactless Smart Card 13.56 MHz

The FM11RF08-M is a Mifare 1K contactless smart card for access control systems, designed for organizations that need a reliable, standardized credential for managing entry across offices, residential buildings, campuses and commercial facilities. Operating at 13.56 MHz in compliance with ISO 14443-A, it is fully compatible with Hikvision DS-K1107AM and DS-K1107MK card readers, as well as any third-party Mifare-compatible reader — making it a practical choice for both new deployments and credential expansion in existing systems.

The FM11RF08 chip provides 1 KB of EEPROM memory organized into 16 independently password-protected sectors. This structure allows a single card to serve multiple simultaneous applications — building access, time and attendance, parking — without data interference between subsystems. Minimum data retention of 10 years ensures long-term credential reliability without premature card replacement cycles.

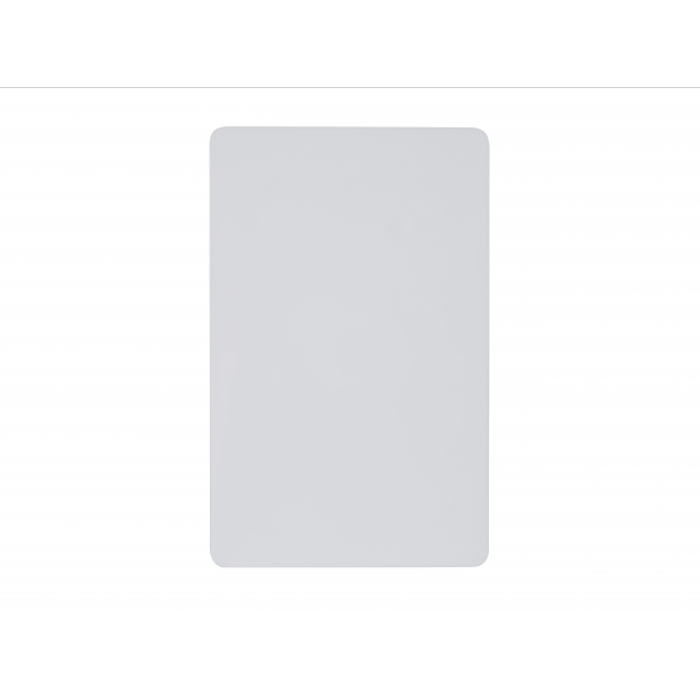

The card follows the ISO CR80 standard format (85.5 × 54 × 0.8 mm) with a PVC body weighing under 5.6 g — the same dimensions as a bank card, fitting naturally in a wallet or badge holder. A read distance of up to 10 cm enables smooth throughput at entry points without requiring users to tap directly on the reader.

Practical use cases include: issuing zoned access credentials to company employees; access control at a residential entrance with DS-K1107AM readers; replacing lost or worn cards in an existing Hikvision installation; enrolling new users in a time and attendance system; combining building and parking access on a single card using separate memory sectors.

The operating temperature range of −20°C to +75°C covers both indoor and outdoor access points, including locations subject to seasonal temperature variation.
