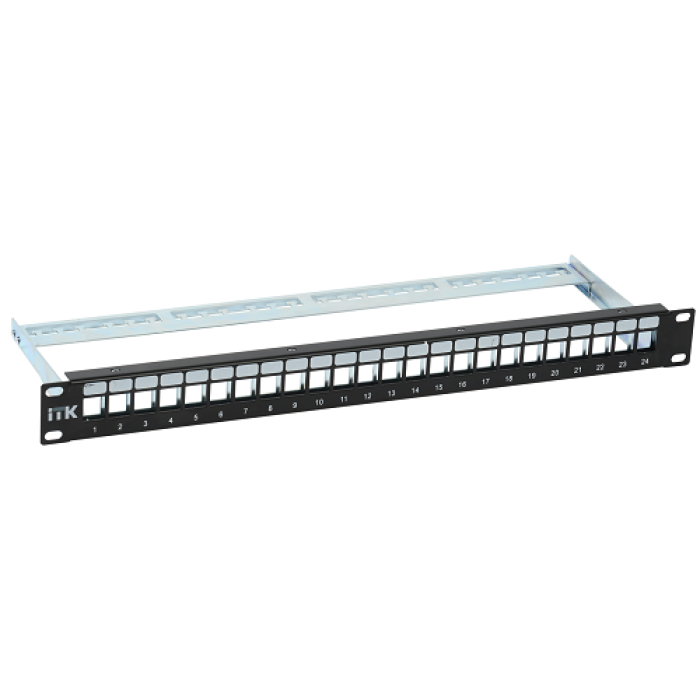

ITK 1U Modular FTP Patch Panel 24 Ports

Patch panels or patch panels are the most important part of any SCS and IT infrastructure of a building and structure with a large number of information outlets and terminal ports of end users that need to be switched to the ports of active network equipment located in server and distribution nodes.

Depending on the mounting method, the scale of the cable system, the type of network, ITK manufactures patch panels for wall mounting or mounting in a 19-inch construct, by the number of ports: 12-, 24-, 25-, 48-, 50-, categories: 3 (telephone), 5E, 6, 6A, shielded and without protective shield.

Patch panels for mounting in a 19" cabinet or rack comply with the 19" (482.6 mm) standard, have holes on the left and right side for fastening to the profile, are produced in heights of 0.5, 1 or 2 units.

On the front side, all ITK patch panels have a special area for additional marking and digital port numbering; on the back side, IDC modules have color and digital numbering. Also available with front or rear cable management to facilitate installation and cable management.

Patch panels comply with international standards UL 1863, ISO/IEC 11801:2002, TIA/EIA-568-B, conductor coding in accordance with T568B and A.

Supplied in a cardboard box with fasteners.
