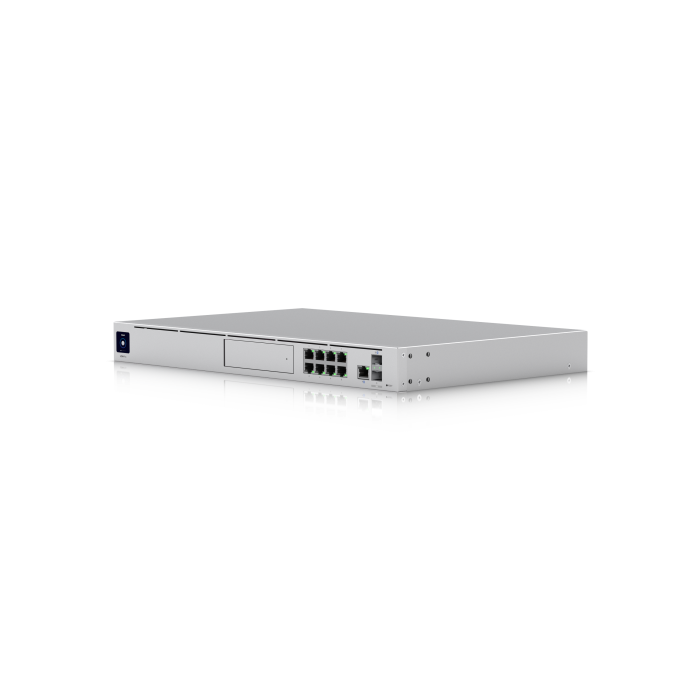

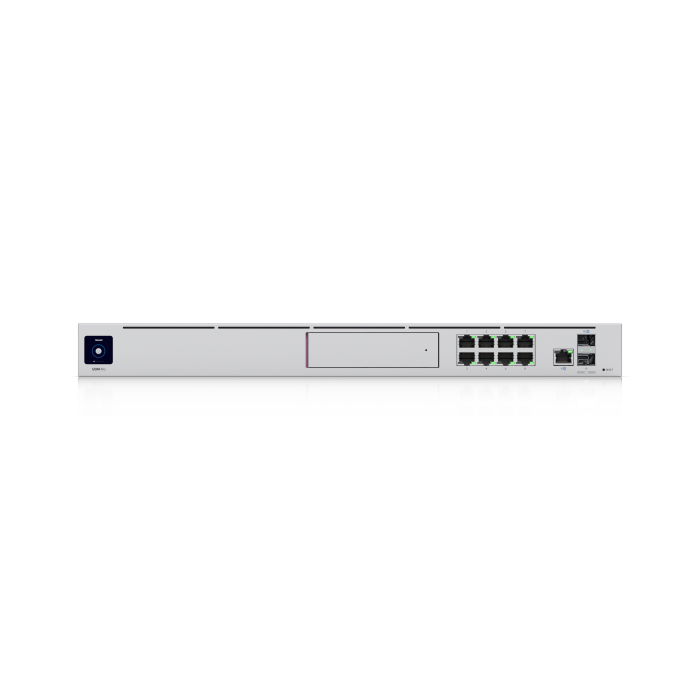

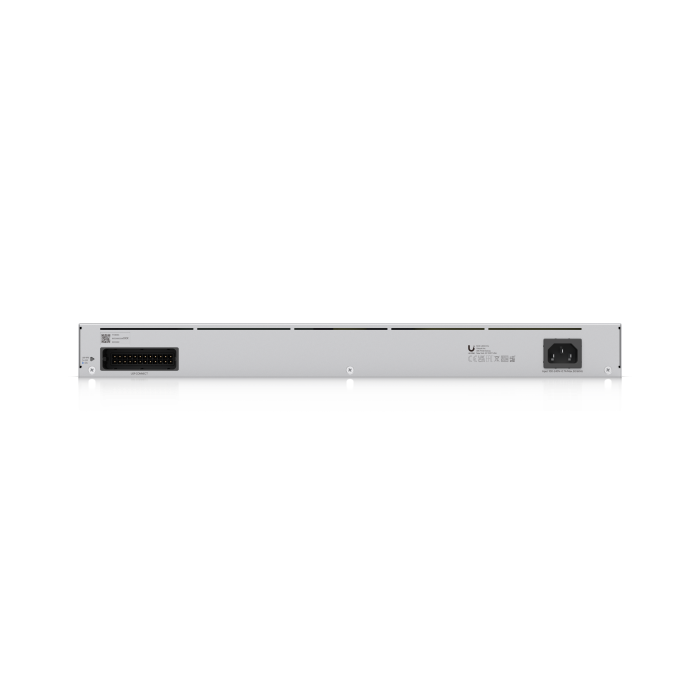

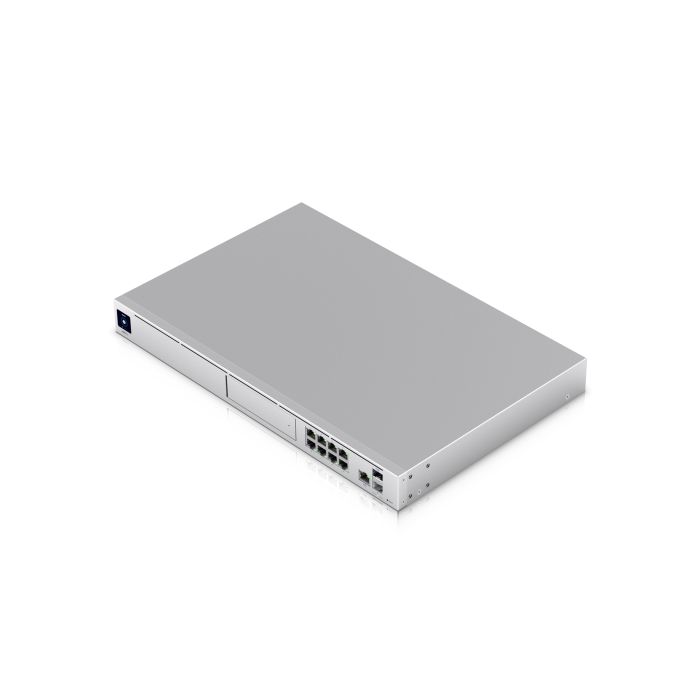

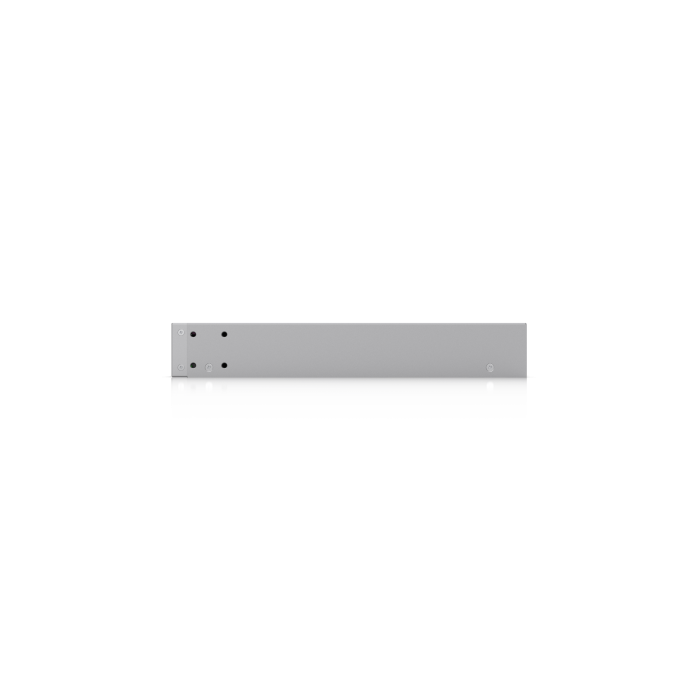

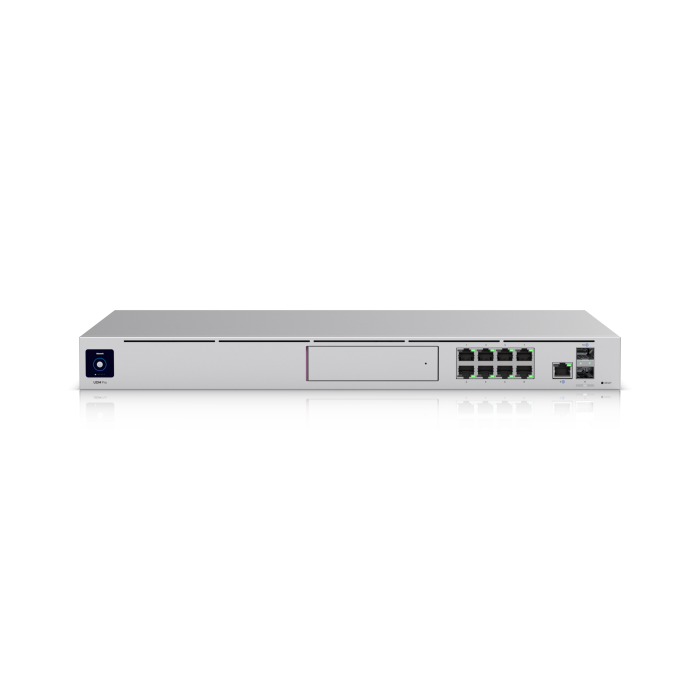

Ubiquiti UDM-Pro – All-in-One Enterprise Gateway

Ubiquiti Dream Machine Pro (UDM-Pro) is an all-in-one enterprise 1U gateway with integrated UniFi Network controller, NVR, and 10G connectivity designed for enterprise networks requiring centralized management, advanced security, and surveillance capabilities.

With a quad-core ARM Cortex-A57 1.7 GHz processor, 4 GB RAM, 16 GB storage, 2× 10G SFP+ (1 default WAN), 9× GbE RJ45 (1 default WAN), and 3.5" HDD bay for NVR, Dream Machine Pro delivers 3.5 Gbps IDS/IPS throughput and can manage 100+ UniFi devices, 24 HD cameras (14× 2K, 8× 4K), 150 access hubs, and 1000+ simultaneous users. Complete UniFi suite: Network, Protect, Access, Talk, Connect. Advanced security: Layer 7 firewall, IDS/IPS (55,000+ signatures with CyberSecure), ad blocking, content filtering, DPI. VPN & SD-WAN: Site Magic, IPsec, OpenVPN, WireGuard, Teleport, license-free SD-WAN. Advanced networking: BGP/OSPF routing, VRRP HA (Shadow Mode), LACP, advanced QoS, multi-WAN load balancing. 1.3" touchscreen display, 1U rack design 442.4 × 43.7 × 285.6 mm, redundancy with DC backup and gateway failover.

Key Specifications:
- UniFi Applications: Network, Protect, Access, Talk, Connect
- Processor: Quad-core ARM Cortex-A57 1.7 GHz
- RAM: 4 GB
- Storage: 16 GB + 3.5" HDD bay NVR
- Ports: 9× GbE RJ45 + 2× 10G SFP+ (Default WAN: 1× 10G SFP+, 1× GbE)
- Max WAN Ports: 8 (configurable)
- IDS/IPS Throughput: 3.5 Gbps
- Managed Devices: 100+ UniFi
- Cameras: 24 HD / 14× 2K / 8× 4K
- Access Hubs: 150
- Users: 1000+ simultaneous
- Security: Layer 7 Firewall, IDS/IPS (55,000+ signatures), Ad Blocking, Content Filtering, DPI
- VPN: Site Magic, IPsec, OpenVPN, WireGuard, Teleport, L2TP
- SD-WAN: License-free, Multi-WAN Load Balancing
- Routing: BGP, OSPF, Advanced QoS
- HA: VRRP Shadow Mode, Gateway Failover, DC Backup
- Display: 1.3" touchscreen
- Form Factor: 1U rack-mount
- Dimensions: 442.4 × 43.7 × 285.6 mm
- Weight: 3.9 kg
- Power: AC/DC internal 50W (100-240V AC) + USP-RPS DC backup
- Consumption: 33W max
- Operating Temperature: -10 to 40°C
- Certifications: CE, FCC, IC, NDAA Compliant

Ideal for: enterprise networks with complete management and surveillance requirements, corporate offices with 100+ UniFi devices, installations requiring performant IDS/IPS (3.5 Gbps), deployments with IP cameras and integrated NVR, branch offices with site-to-site VPN and BGP/OSPF, environments with high availability requirements (VRRP), installations with 10G uplinks to backbone, and any enterprise setup benefiting from an all-in-one gateway with integrated controller, NVR, advanced security, and flexible 10G connectivity in 1U rack form factor.
