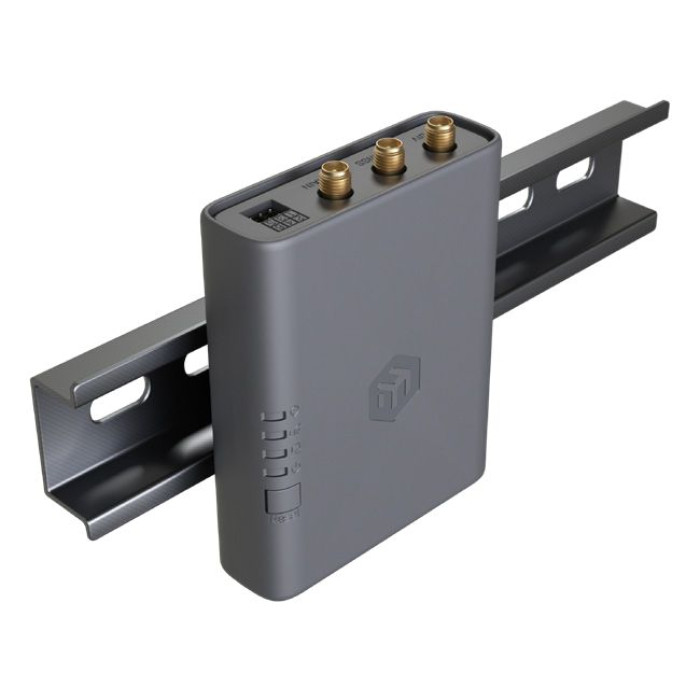

MikroTik KNOT Embedded LTE4 Global – Industrial IoT Gateway for Automation & Remote Monitoring

MikroTik KNOT Embedded LTE4 Global (EG25-G&KNe) is your compact industrial LTE gateway with LTE/BLE/GNSS connectivity for large-scale automation and IoT. Originally designed for coffee and vending machines, the KNOT Embedded LTE4 Global has proven perfect for any industrial automation application where space is limited but reliability is critical. By combining the LTE Category 4 EG25-G modem (DL 150 Mbps, UL 50 Mbps), Bluetooth 5.1 with Long Range and Extended Advertising, GNSS/GPS supporting Galileo, GPS, Glonass, BDS and QZSS, sensor-ready GPIO and Gigabit Ethernet port with PoE-In, the device becomes the complete industrial connectivity solution in one compact unit. This is the Global version with expanded LTE band support for North America and other non-EMEA markets, certified PTCRB + AT&T.

Equipped with LTE FDD bands: Band 1 (2100MHz), Band 2 (1900MHz), Band 3 (1800MHz), Band 4 (1700MHz), Band 5 (850MHz), Band 7 (2600MHz), Band 8 (900MHz), Band 12 (700MHz), Band 13 (700MHz), Band 18 (800MHz), Band 19 (800MHz), Band 20 (800MHz), Band 25 (1900MHz), Band 26 (850MHz), Band 28 (700MHz) and LTE TDD bands: Band 38 (2600MHz), Band 39 (1900MHz), Band 40 (2300MHz), Band 41 (2500MHz), the KNOT Embedded LTE4 Global delivers reliable nationwide coverage in the USA through dual-operator access via AT&T and US Cellular. The built-in Bluetooth scanner enables reliable communication with MikroTik Bluetooth tags and BLE sensors — gather telemetry, track assets and securely transmit data over LTE from a single compact device. MIMO DL 2×2 maximizes download speeds, while 3G Category R8 support (DL 42.2 Mbps, UL 5.76 Mbps) and 2G Class 12 guarantee connectivity in any area.

Built with ARM 32-bit 800 MHz CPU, 256 MB DDR RAM, 256 MB NAND storage, Nano SIM + eSIM slots, SMA female RF connector, operating temperature range -40°C to +70°C, ultra-compact dimensions 90 × 70 × 22 mm and RouterOS v7 operating system (License Level 3) — providing full networking stack, VPNs, firewall, SMS control and notifications, automation and remote management. Powered via PoE-In (802.3af/at, 12–57 V) or USB Type-C (5V), with maximum power consumption of just 6W. The sensor-ready GPIO header (Digital input/Analog Input/OD output, all pins 24V tolerant) enables simple automation and monitoring. Direct DIN rail or wall mounting. With MikroTik eSIM, activate a data plan directly from your MikroTik account and get online within minutes — no physical SIM cards, no carrier contracts, no activation delays.

Ideal for: retail kiosks, payment terminals and digital signage, coffee and vending machines with remote monitoring, IoT gateways for BLE sensors and beacons, smart city infrastructure (parking, sensors, metering), industrial automation cabinets, environmental and utility monitoring, vehicle and asset tracking with GNSS, LTE backup connectivity for existing Ethernet devices, and any industrial application where space is limited but reliable connectivity is essential.
