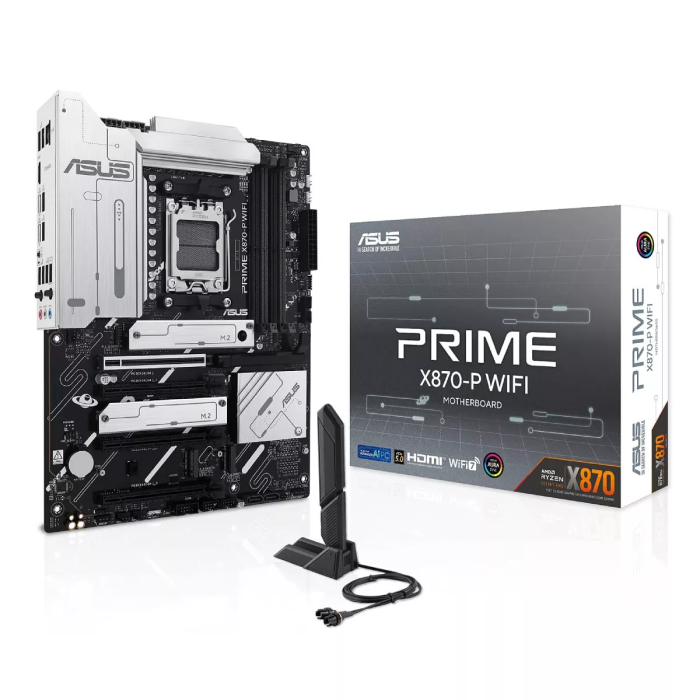

ASUS PRIME X870-P WIFI AM5 ATX Motherboard with DDR5 and Wi-Fi 7 for Workstation

The ASUS PRIME X870-P WIFI motherboard delivers a robust professional platform for workstations, entry-level servers and intensive business computing systems. Built on the AMD X870 chipset with AM5 socket, this ATX board ensures compatibility with AMD Ryzen 7000/9000 series processors, supporting multi-core configurations for complex professional applications.

The memory system supports 4 DDR5 DIMM slots with maximum capacity of 192GB and frequencies up to 8000MHz, essential for intensive data processing operations, virtualization and CAD/rendering applications. Storage architecture includes 4 M.2 connectors (2242/2260/2280 format) and 2 SATA 6Gb/s ports, with RAID 0/1/5/10 support for redundancy and optimized performance in mission-critical business environments.

Expansion connectivity provides 1 PCIe 5.0 x16 slot for professional GPUs or high-end capture cards, plus 1 PCIe 4.0 x16 slot for multi-device configurations. The 2.5 Gigabit LAN network interface (10/100/1000/2500 Mb/s) ensures high throughput for corporate data transfer, while the Wi-Fi 7 (802.11be) module with Bluetooth 5.4 enables next-generation wireless connectivity in modern work environments.

The integrated audio subsystem based on Realtek chip with 3 jack connectors ensures professional sound quality for conferencing and business multimedia. The board features 8 USB ports (4x USB 2.0, 4x USB 3.2, 2x USB Type-C), 1 HDMI port and 1 RJ-45 port, providing flexibility in connecting peripherals and multiple displays.

The BIOS FlashBack function enables firmware updates without installed CPU, simplifying maintenance in large-scale deployments. Standard ATX dimensions (30.5 x 24.4 cm) ensure compatibility with standard server cases and workstations, while ASUS construction guarantees long-term reliability in continuous operation environments.

Ideal for: CAD/3D workstations with high-core-count AMD Ryzen, SMB servers for storage and virtualization, 4K/8K video editing stations with NVMe RAID, software development systems with intensive compilations, multi-VM configurations for testing and CI/CD, deployment in corporate networks with 2.5G/Wi-Fi 7 requirements, data analysis platforms with high-speed DDR5, edge computing systems with advanced connectivity.
